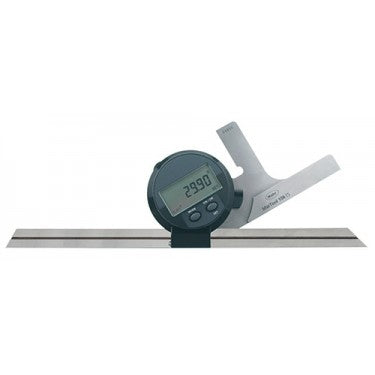

Mahr 106 ES Electronic Universal Bevel Protractor 4214600
Roll over image to zoom in Click on image to zoom
Mahr 106 ES Electronic Universal Bevel Protractor 4214600

Mahr 106 ES Electronic Universal Bevel Protractor 4214600

Mahr SKU: 4214600
List price: €1,100.00 Offer price: €575.00 Excluding VAT

Optional Services

Supplied with a UKAS calibration certificate. Gauge is in stock; calibration adds 7–10 working days.
Add your Gauge ID, asset/serial number, company name, logo or QR code.

The 4214600 Mahr 106 ES Electronic Universal Bevel Protractor is on sale at Gaging.com!

Functions:

  • IP51 protected
  • Displays the angular degrees and angular minutes or decimal degrees
  • Zero setting at any position
  • Fine adjustment for easy setting
  • High contrast display with 8.5mm high digits
  • RS232C data output
  • Beam and base plate are made of stainless steel, measuring edges are hardened
  • Battery life approximately 2 years
  • Maximum setting speed 3 rotations per second
Order No. Measuring Range Resolution (switchable) Deviation
4214600 106 ES 1 x 360° or 2 x 180° or 4 x 90° 1 minutes or 0.01° ± 2 minutes

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
