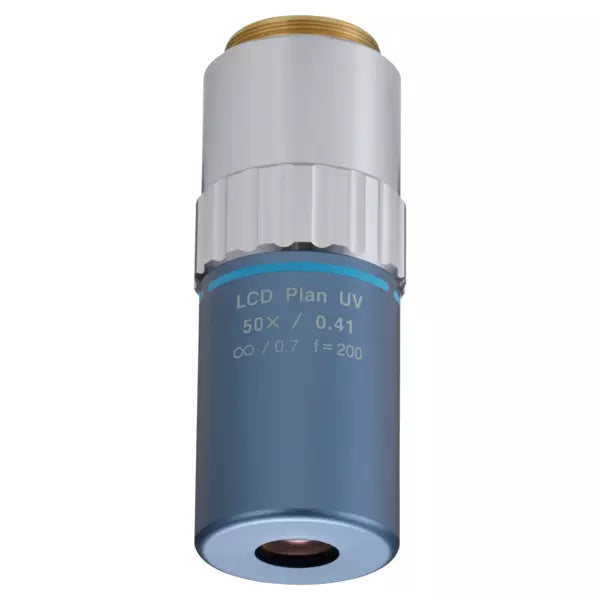

378-893-8 LCD Plan UV 50X(t0.7) Objective for bright-field observation in ultraviolet range with cover glass compensation

Roll over image to zoom in Click on image to zoom

378-893-8 LCD Plan UV 50X(t0.7) Objective for bright-field observation in ultraviolet range with cover glass compensation

Name: 378-893-8 LCD Plan UV 50X(t0.7) Objective for bright-field observation in ultraviolet range with cover glass compensation
Brand: Mitutoyo
SKU: 378-893-8
Price: 16433.73 EUR
Availability: InStock

MitutoyoSKU: 378-893-8

Price:

€16,433.73

Quantity:

Suitable for Bright Field Inspection and Laser Applications through 0,7 mm LCD cover-glass
Long Working Distance
High Quality Plan Design
Wavelength optimized for Visible and Ultraviolett (266 nm)

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

Model:	LCD Plan UV 50X (t0,7)
Functions:	Ultraviolet wavelength and LCD Glass Thickness Corrected LCD Plan UV for Bright Field Observation Compatible with microscope types VMU / FS-70>
Magnification:	50x
Working distance:	Through glass: 12.6 mm In Air: 12.38 mm
Corrected Wave Length:	266 and 550 nm
N.A.:	0.41
f:	4 mm
P.D.:	95 mm
R:	0.7 µm
D.F.:	1.6 μm
FOV 1:	ø0.48 mm
FOV 2:	0,1 x 0,13 mm
Abbreviations in product table:	N.A.: Numerical aperture W.D.: Working distance P.D.: Parfocal distance f: Focal distance R: Resolving power D.F.: Depth of focus FOV 1: Field of view when using ø24 mm eyepiece FOV 2: Field of view when using a digital camera with 1/2" chip size
Mass:	400 g
