Suitable for Bright Field Inspection and Laser Applications through 0,7 or 1,1 mm LCD conver-glass Long Working Distance
High Quality Plan Apochromat Design
Wavelength correction from Visible to Near Ultraviolett (355 nm)
High Resolution Type available (LCD Plan Apo NUV HR)
Features

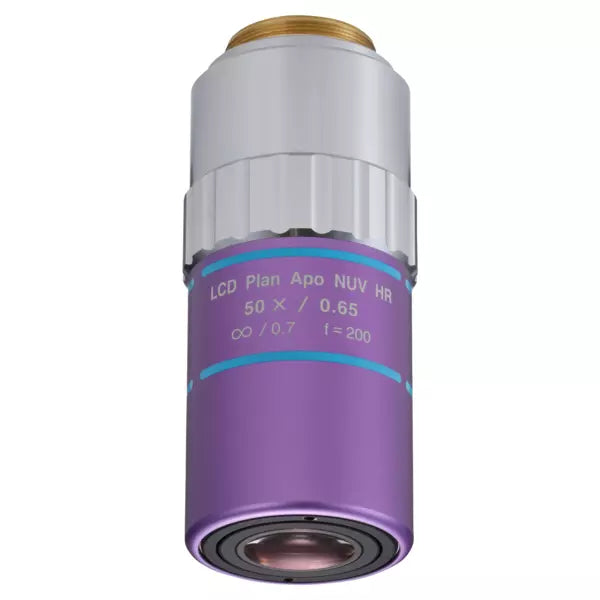

Model:
LCD plan Apo
NUV HR 50X (t0,7)
Functions:
Near-ultraviolet wavelength and LCD Glass Thickness Corrected
LCD Plan Apo NUV for Bright Field Observation
Compatible with microscope types VMU / FS-70
Note: For 378-820-4, W.D. is just measured in air, not through an LCD glass
Magnification:
50x

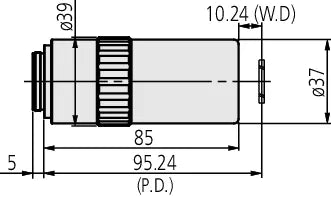

Working distance:
Through glass: 10 mm
In Air: 9.76 mm
Corrected Wave Length: 355-620 nm
N.A.: 0.65
f: 4 mm
P.D.: 95 mm
R: 0.4 µm
D.F.: 0.7 μm
FOV 1: ø0.48 mm
FOV 2: 0,1 x 0,13 mm
Abbreviations in product table:
N.A.: Numerical aperture
W.D.: Working distance
P.D.: Parfocal distance
f: Focal distance
R: Resolving power
D.F.: Depth of focus
FOV 1: Field of view when using ø24 mm eyepiece
FOV 2: Field of view when using a digital camera with 1/2" chip size
Mass: 500 g
