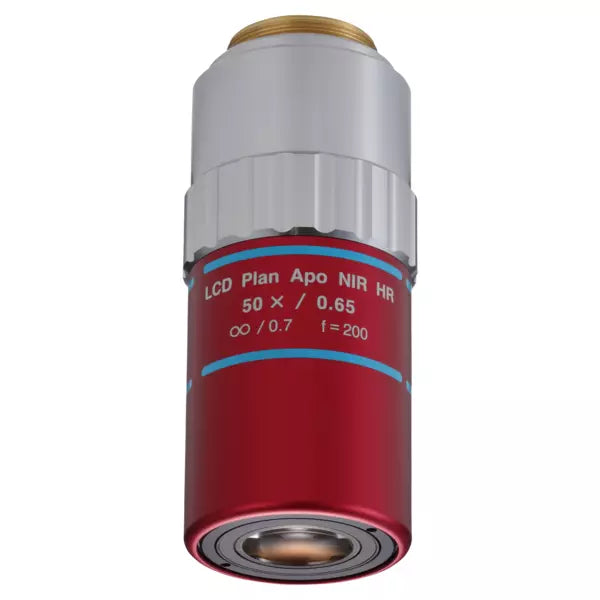

378-869-5 LCD Plan Apo NIR HR 50X(t0.7) High resolution objective for bright-field observation in near-infrared range with cover glass compensation

Roll over image to zoom in Click on image to zoom

378-869-5 LCD Plan Apo NIR HR 50X(t0.7) High resolution objective for bright-field observation in near-infrared range with cover glass compensation

Name: 378-869-5 LCD Plan Apo NIR HR 50X(t0.7) High resolution objective for bright-field observation in near-infrared range with cover glass compensation
Brand: Mitutoyo
SKU: 378-869-5
Price: 11373.49 EUR
Availability: InStock

MitutoyoSKU: 378-869-5

Price:

€11,373.49

Quantity:

Suitabel for Bright Field Inspection and Laser-based repair Applications through 0.7 or 1.1 mm LCD cover-glass
Long Working Distance
High Quality Plan Apoochromat Design
Wavelength correction from Visible to Near Infrared (1800 nm)

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

Model:	LCD Plan Apo NIR HR 50X (t 0,7)
Magnification:	50x
Working distance:	Through glass: 9.84 mm In Air: 9.6 mm
Corrected Wave Length:	480-1800 nm
N.A.:	0.65
f:	4 mm
R:	0.4 µm
D.F.:	0.7 μm
FOV 1:	ø0.48 mm
FOV 2:	0,1 x 0,13 mm
Abbreviations in product table:	N.A.: Numerical aperture W.D.: Working distance P.D.: Parfocal distance f: Focal distance R: Resolving power D.F.: Depth of focus FOV 1: Field of view when using ø24 mm eyepiece FOV 2: Field of view when using a digital camera with 1/2" chip size
Mass:	450 g

378-869-5 LCD Plan Apo NIR HR 50X(t0.7) High resolution objective for bright-field observation in near-infrared range with cover glass compensation
