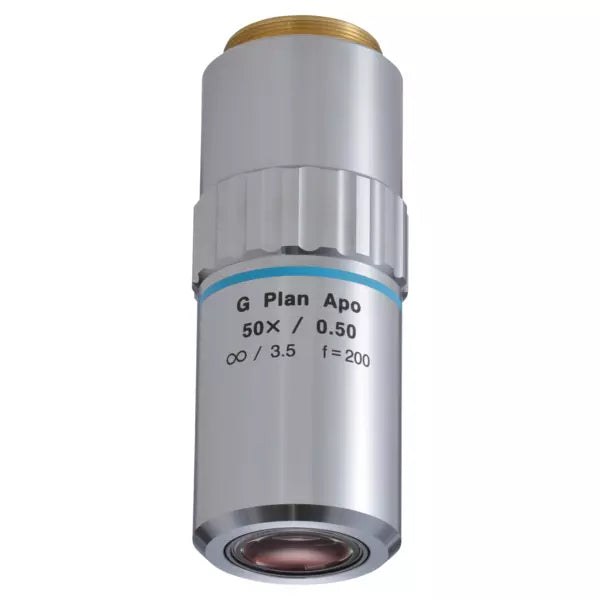

378-848-3 G Plan Apo 50X(t3.5) Objective for bright-field observation in visible range with cover glass compensation
378-848-3 G Plan Apo 50X(t3.5) Objective for bright-field observation in visible range with cover glass compensation
Roll over image to zoom in Click on image to zoom
378-848-3 G Plan Apo 50X(t3.5) Objective for bright-field observation in visible range with cover glass compensation378-848-3 G Plan Apo 50X(t3.5) Objective for bright-field observation in visible range with cover glass compensation

378-848-3 G Plan Apo 50X(t3.5) Objective for bright-field observation in visible range with cover glass compensation

Mitutoyo SKU: 378-848-3
Price: €4,000.00 Excluding VAT
  • Infinity Corrected
  • Bright Field Inspection
  • High Qualtiy Plan Apochromat Design
  • Designed to observe Objects through 3.5 mm thick Cover Glass

Note: Contact Mitutoyo to custom order a specific cover glass correction to suit your application if required. Thickness, material and refractive index are all specifiable within usual limits.
Features
Model:
G Plan Apo 50X
Working distance:
Through glass: 15.08 mm
In Air: 13.89 mm
Corrected Wave Length:
436-656 nm
N.A.:
0.5
f:
4 mm
P.D.:
96.19 mm
R:
0.6 µm
FOV 1:
ø0.48 mm
FOV 2:
0,1 x 0,13 mm
Abbreviations in product table:
Mag.: Magnification
N.A.: Numerical aperture
W.D.: Working distance
P.D.: Parfocal distance
f: Focal distance
R: Resolving power
D.F.: Depth of field
FOV 1: Field of view when using ø24 mm eyepiece
FOV 2: Field of view when using a digital camera with 1/2" chip size

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
