378-839-5 M Plan UV 80X Objective for bright-field observation in ultraviolet range

Roll over image to zoom in Click on image to zoom

378-839-5 M Plan UV 80X Objective for bright-field observation in ultraviolet range

Name: 378-839-5 M Plan UV 80X Objective for bright-field observation in ultraviolet range
Brand: Mitutoyo
SKU: 378-839-5
Price: 18469.88 EUR
Availability: InStock

MitutoyoSKU: 378-839-5

Price:

€18,469.88

Quantity:

Suitable for Bright Field Inspection and Laser Applications
Long Working Distance
High Quality Plan Design
Wavelength optimized for Visible and Ultraviolett (266 nm) Wavelength
High Transmission in Ultraviolett Range

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

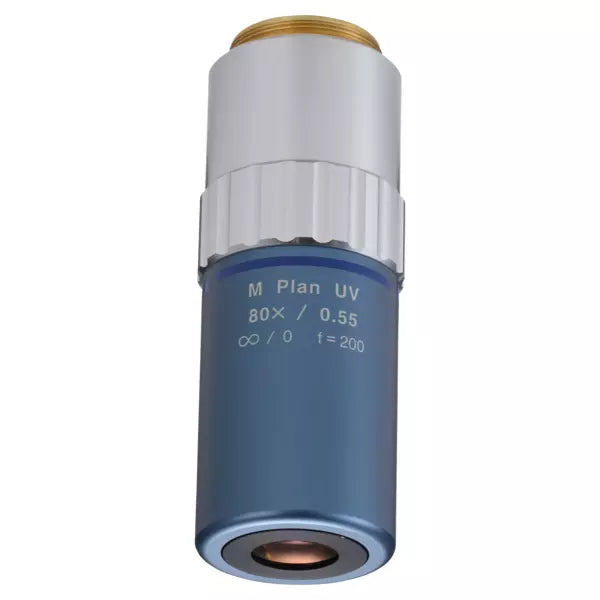

Model:	M Plan UV 80X
Functions:	Ultraviolet wavelenght Corrected M Plan UV for Bright Field Observation Compatible with microscope types VMU / FS-70
Magnification:	80x
Working distance:	In Air: 10 mm
Corrected Wave Length:	266 and 550 nm
N.A.:	0.55
f:	2.6 mm
P.D.:	95 mm
R:	0.5 µm
D.F.:	0.9 μm
FOV 1:	ø0.3 mm
FOV 2:	0,06 x 0,08 mm
Abbreviations in product table:	N.A.: Numerical aperture W.D.: Working distance P.D.: Parfocal distance f: Focal distance R: Resolving power D.F.: Depth of focus FOV 1: Field of view when using ø24 mm eyepiece FOV 2: Field of view when using a digital camera with 1/2" chip size
Mass:	380 g
