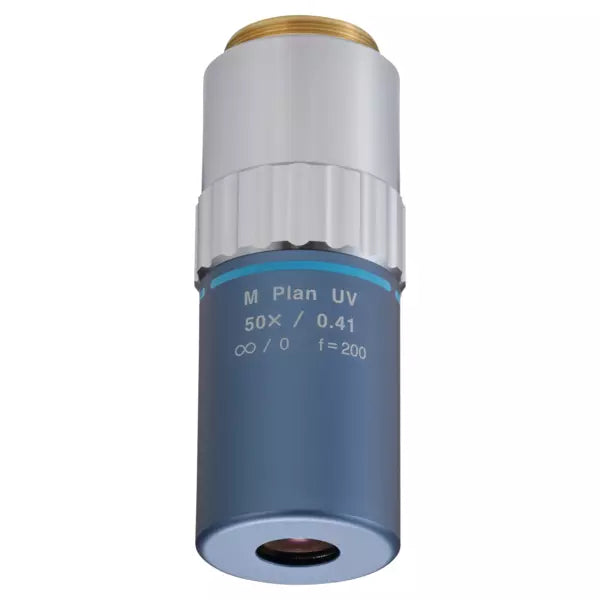

378-838-8 M Plan UV 50X Objective for bright-field observation in ultraviolet range
378-838-8 M Plan UV 50X Objective for bright-field observation in ultraviolet range
Roll over image to zoom in Click on image to zoom
378-838-8 M Plan UV 50X Objective for bright-field observation in ultraviolet range378-838-8 M Plan UV 50X Objective for bright-field observation in ultraviolet range

378-838-8 M Plan UV 50X Objective for bright-field observation in ultraviolet range

Mitutoyo SKU: 378-838-8
Price: €13,518.07 Excluding VAT
  • Suitable for Bright Field Inspection and Laser Applications
  • Long Working Distance
  • High Quality Plan Design
  • Wavelength optimized for Visible and Ultraviolett (266 nm) Wavelength
  • High Transmission in Ultraviolett Range
Features
Model:
M Plan UV 50X
Functions:



Ultraviolet wavelenght Corrected
M Plan UV for Bright Field Observation
Compatible with microscope types VMU / FS-70
Magnification:
50x
Working distance:
In Air: 12 mm
Corrected Wave Length:
266 and 550 nm
N.A.:
0.41
f:
4 mm

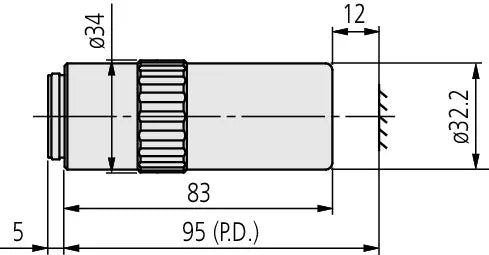

P.D.:
95 mm
R:
0.7 µm
D.F.:
1.6 μm
FOV 1:
ø0.48 mm
FOV 2:
0,1 x 0,13 mm
Abbreviations in product table:
N.A.: Numerical aperture
W.D.: Working distance
P.D.: Parfocal distance
f: Focal distance
R: Resolving power
D.F.: Depth of focus
FOV 1: Field of view when using ø24 mm eyepiece
FOV 2: Field of view when using a digital camera with 1/2" chip size
Mass:
400 g

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
