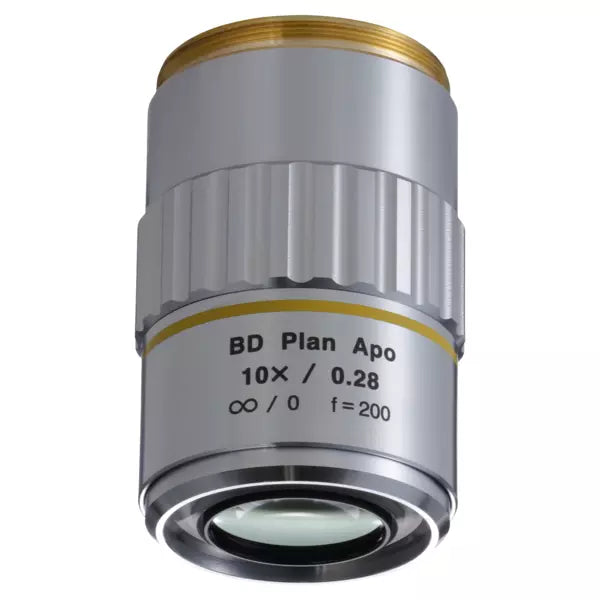

378-833-7 BD Plan Apo 10X Objective for bright/dark-field observation in visible range

Roll over image to zoom in Click on image to zoom

378-833-7 BD Plan Apo 10X Objective for bright/dark-field observation in visible range

Name: 378-833-7 BD Plan Apo 10X Objective for bright/dark-field observation in visible range
Brand: Mitutoyo
SKU: 378-833-7
Price: 1112.5 EUR
Availability: InStock

MitutoyoSKU: 378-833-7

Price:

€1,112.50

Quantity:

Features

Bright/Dark Field Inspection
Infinity corrected
Long Working Distance
High Qualtiy Plan Apochromat Design
Suited for inspection of scratches, concavity and convexity on surfaces

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

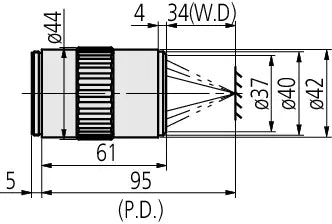

Model:	BD Plan Apo 10X
Magnification:	10x
Working distance:	In Air: 33.5 mm
Corrected Wave Length:	436-656 nm
N.A.:	0.28
f:	20 mm
R:	1 µm
D.F.:	3.5 μm
FOV 1:	ø2.4 mm
FOV 2:	0,48 x 0,64 mm
Abbreviations in product table:	N.A.: Numerical aperture W.D.: Working distance P.D.: Parfocal distance f: Focal distance R: Resolving power D.F.: Depth of field FOV 1: Field of view when using ø24 mm eyepiece FOV 2: Field of view when using a digital camera with 1/2" chip size
Functions:	BD Plan Apo for Bright/Dark Field Observation Compatible with microscope types MF-U / Hyper MF-U
Mass:	350 g
