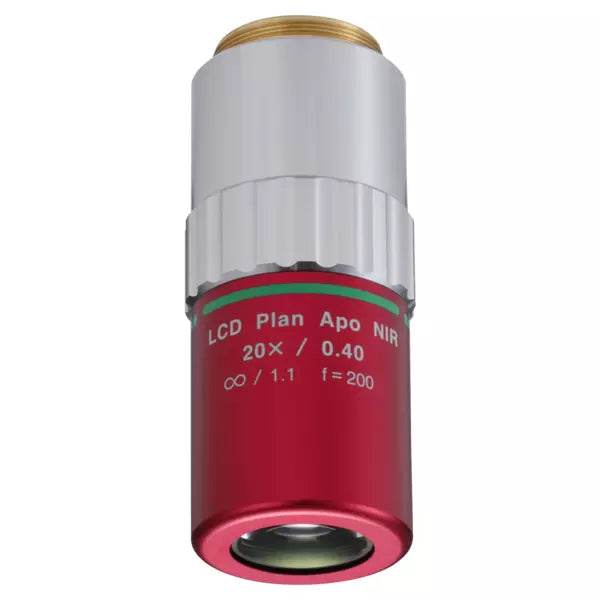

378-827-16 LCD Plan Apo NIR 20x(t1.1) Objective for BF observation in near-infrared with cover glass compensation
378-827-16 LCD Plan Apo NIR 20x(t1.1) Objective for BF observation in near-infrared with cover glass compensation
Roll over image to zoom in Click on image to zoom
378-827-16 LCD Plan Apo NIR 20x(t1.1) Objective for BF observation in near-infrared with cover glass compensation378-827-16 LCD Plan Apo NIR 20x(t1.1) Objective for BF observation in near-infrared with cover glass compensation

378-827-16 LCD Plan Apo NIR 20x(t1.1) Objective for BF observation in near-infrared with cover glass compensation

Mitutoyo SKU: 378-827-16
Price: €3,036.14 Excluding VAT
  • Suitabel for Bright Field Inspection and Laser-based repair Applications through 0.7 or 1.1 mm LCD cover-glass
  • Long Working Distance
  • High Quality Plan Apoochromat Design
  • Wavelength correction from Visible to Near Infrared (1800 nm)
Features
Model:
LCD Plan Apo NIR 20X (t1,1)
Functions:
Near-infrared wavelength and LCD Glass Thickness Corrected
LCD Plan Apo NIR for Bright Field Observation
Compatible with microscope types VMU / FS-70
Note: W.D. is just measured in air, not through an LCD glass
Magnification:
20x

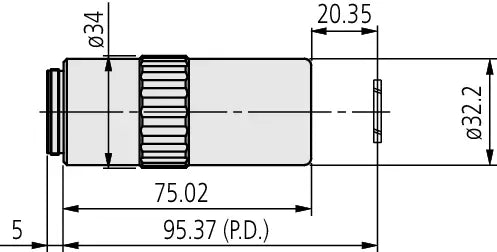

Working distance:
Through glass: 20.35 mm
In Air: 19.98 mm
Corrected Wave Length:
480-1800 nm
N.A.:
0.4
f:
10 mm
R:
0.7 µm
D.F.:
1.7 μm
FOV 1:
ø1.2 mm
FOV 2:
0,24 x 0,32 mm
Abbreviations in product table:
N.A.: Numerical aperture
W.D.: Working distance
P.D.: Parfocal distance
f: Focal distance
R: Resolving power
D.F.: Depth of focus
FOV 1: Field of view when using ø24 mm eyepiece
FOV 2: Field of view when using a digital camera with 1/2" chip size
Mass:
305 g

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
