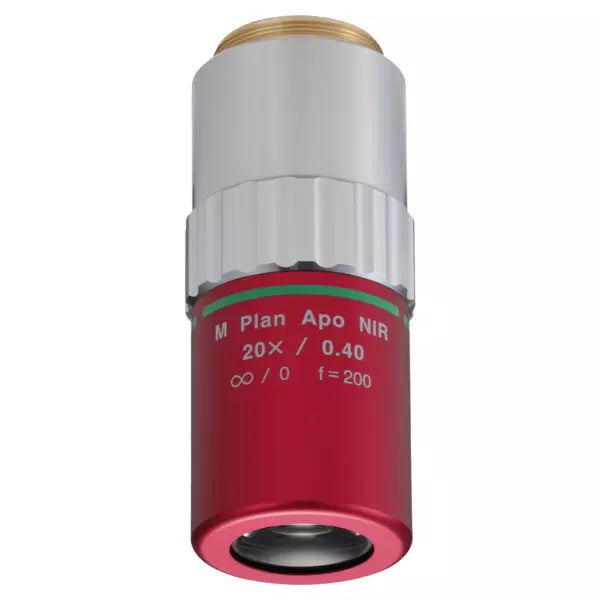

378-824-16 M Plan Apo NIR 20X Objective for bright-field observation in near-infrared range

M Plan Apo NIR 20X

0.40

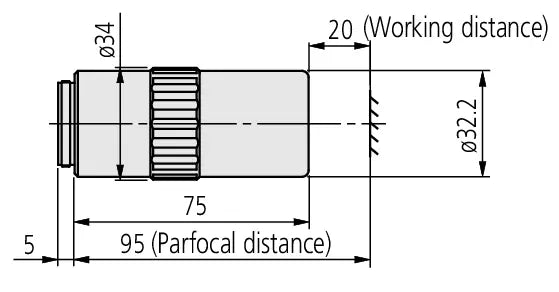

95 mm

1.7 μm

0.24 x 0.32 mm

Note:
These objective lenses are designed so that the image of a workpiece remains focused within the focal depth even when the wavelength used is changed from within the visible range up to the near-infrared (480 to 1,800 nm).
Therefore the M Plan NIR Series are suitable for laser repair. However, when the wavelength used exceeds 1,100 nm, the focussing position may deviate slightly from that in the visible range due to changes in glass dispersion and refractive index.
