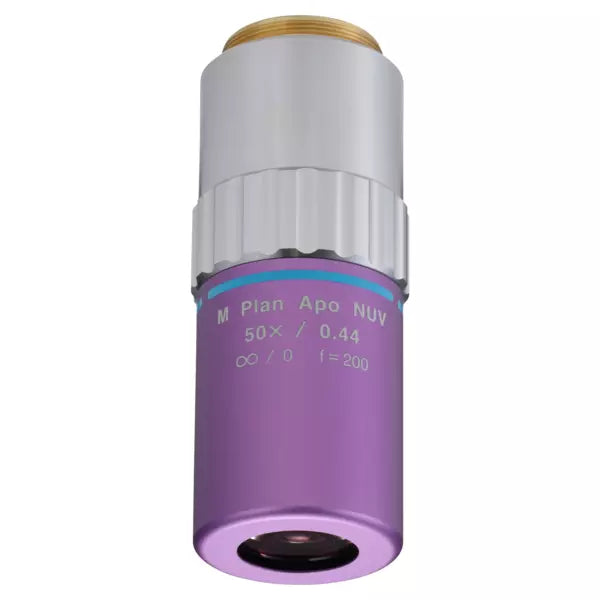

378-818-8 M Plan Apo NUV 50X Objective for bright-field observation in near-ultraviolet range
378-818-8 M Plan Apo NUV 50X Objective for bright-field observation in near-ultraviolet range
Roll over image to zoom in Click on image to zoom
378-818-8 M Plan Apo NUV 50X Objective for bright-field observation in near-ultraviolet range378-818-8 M Plan Apo NUV 50X Objective for bright-field observation in near-ultraviolet range

378-818-8 M Plan Apo NUV 50X Objective for bright-field observation in near-ultraviolet range

Mitutoyo SKU: 378-818-8
Price: €5,710.84 Excluding VAT
  • Suitable for Bright Field Inspection and Laser Applications
  • Long Working Distance
  • High Quality Plan Apochromat Design
  • Wavelength correction from Visible to Near Ultraviolett (355 nm)
  • High Power Type available (M Plan Apo NUV HR)
Features
Model:
M Plan Apo
NUV 50X
Magnification:
50x

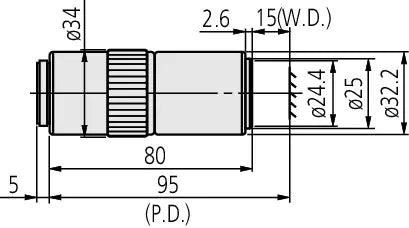

Working distance:
In Air: 15 mm
Corrected Wave Length:
355-656.3 nm
N.A.:
0.44
f:
4 mm
P.D.:
95 mm
R:
0.6 µm
D.F.:
1.4 μm
FOV 1:
ø0.48 mm
FOV 2:
0.10 x 0.13 mm
Abbreviations in product table:
N.A.: Numerical aperture
W.D.: Working distance
P.D.: Parfocal distance
f: Focal distance
R: Resolving power
D.F.: Depth of focus
FOV 1: Field of view when using ø24 mm eyepiece
FOV 2: Field of view when using a digital camera with 1/2" chip size
Mass:
390 g
