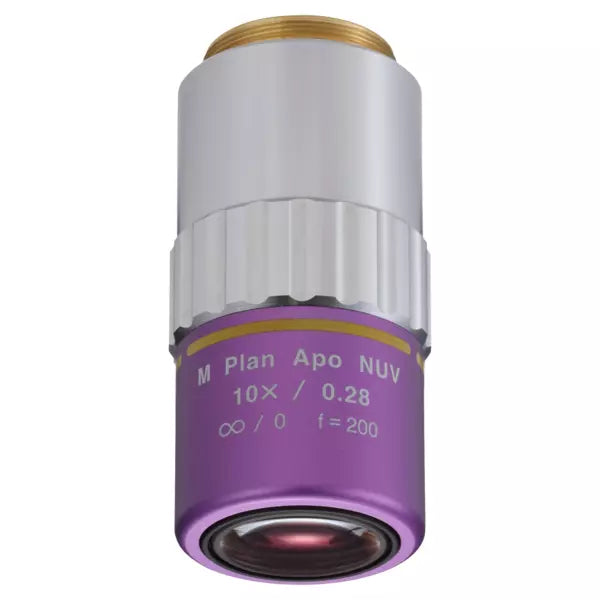

378-809-5 M Plan Apo NUV 10X Objective for bright-field observation in near ultraviolett range

Roll over image to zoom in Click on image to zoom

378-809-5 M Plan Apo NUV 10X Objective for bright-field observation in near ultraviolett range

Name: 378-809-5 M Plan Apo NUV 10X Objective for bright-field observation in near ultraviolett range
Brand: Mitutoyo
SKU: 378-809-5
Price: 4825.0 EUR
Availability: InStock

MitutoyoSKU: 378-809-5

Price:

€4,825.00

Quantity:

Suitable for Bright Field Inspection and Laser Applications
Long Working Distance
High Quality Plan Apochromat Design
Wavelength correction from Visible to Near Ultraviolett (355 nm)
High Power Type available (M Plan Apo NUV HR)

Model:	M Plan Apo NUV 10X
Functions:	Near-ultraviolet wavelength Corrected M Plan Apo NUV for Bright Field Observation Compatible with microscope types VMU / FS-70
Magnification:	10x
Working distance:	In Air: 30.5 mm
Corrected Wave Length:	355-620 nm
N.A.:	0.28
f:	20 mm
P.D.:	95 mm
R:	1 µm
D.F.:	3.5 μm
FOV 1:	ø2.4 mm
FOV 2:	0,48 x 0,64 mm
Abbreviations in product table:	N.A.: Numerical aperture W.D.: Working distance P.D.: Parfocal distance f: Focal distance R: Resolving power D.F.: Depth of focus FOV 1: Field of view when using ø24 mm eyepiece FOV 2: Field of view when using a digital camera with 1/2" chip size
Mass:	255 g
