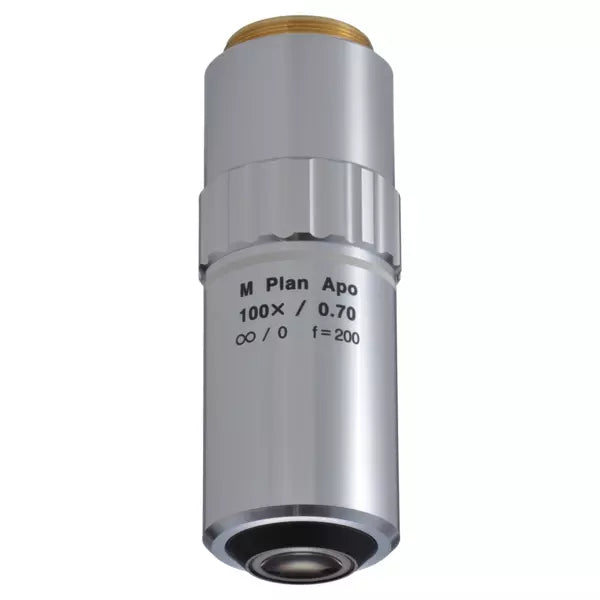

378-806-3 M Plan Apo 100X Objective for bright-field observation in visible range

Roll over image to zoom in Click on image to zoom

378-806-3 M Plan Apo 100X Objective for bright-field observation in visible range

Name: 378-806-3 M Plan Apo 100X Objective for bright-field observation in visible range
Brand: Mitutoyo
SKU: 378-806-3
Price: 3500.0 EUR
Availability: InStock

MitutoyoSKU: 378-806-3

Price:

€3,500.00

Quantity:

Long Working Distances
Infinity Corrected
Bright Field Inspection
High Quality Plan Apochromat Design
Flat Image Surface over Entire Field of View

Features

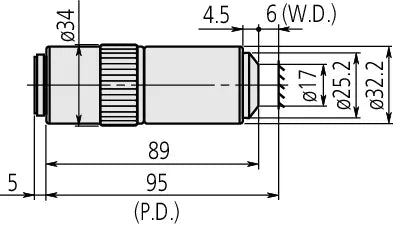

Model:	M Plan Apo 100X
Working distance:	In Air: 6 mm
Corrected Wave Length:	436-656 nm
N.A.:	0.7
f:	2 mm
P.D.:	95 mm
R:	0.4 µm
FOV 1:	ø0.24 mm
FOV 2:	0,05 x 0,06 mm
Abbreviations in product table:	N.A.: Numerical aperture W.D.: Working distance P.D.: Parfocal distance f: Focal distance R: Resolving power D.F.: Depth of field FOV 1: Field of view when using ø24 mm eyepiece FOV 2: Field of view when using a digital camera with 1/2" chip size
Functions:	M Plan Apo for Bright Field Observation Compatible with microscope types VMU / FS-70 / MF-U / Hyper MF-U Note: To avoid optical flare in use of coaxial illumination 1x objectives should be used togehter with polarisation unit on microscope and attached 1/4 wavelength plate.
Mass:	320 g
