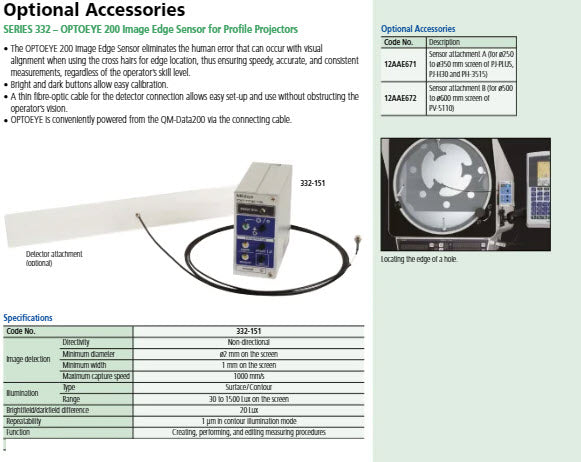

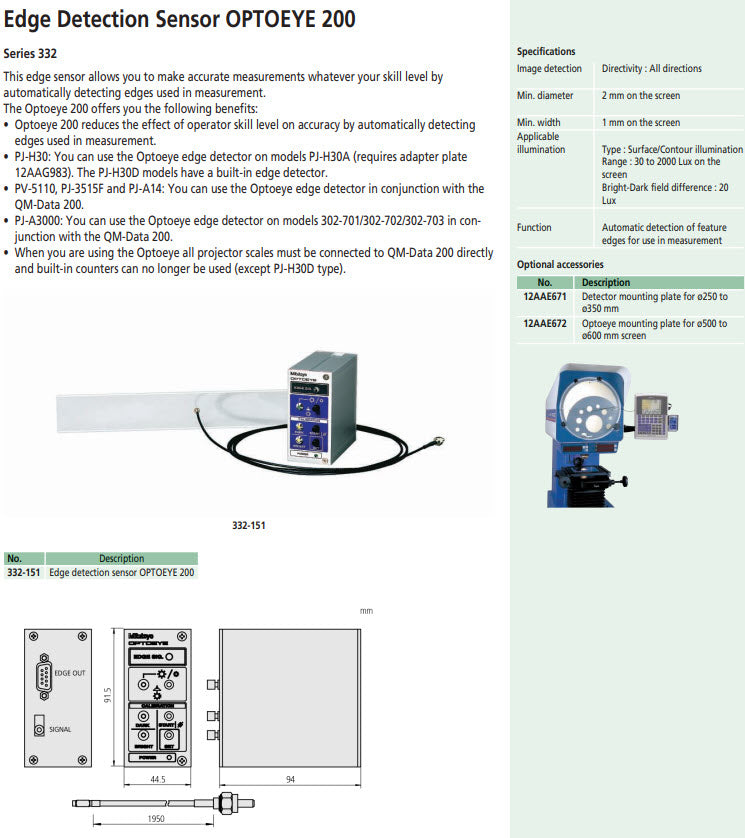

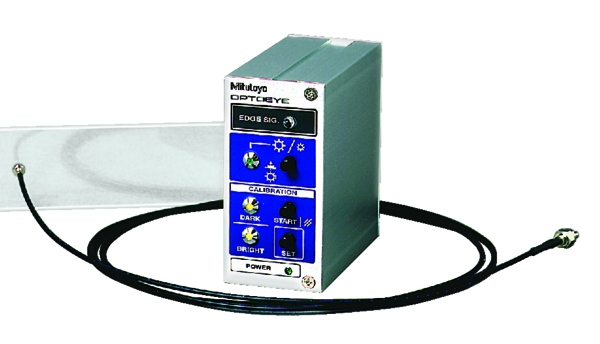

This edge sensor allows you to make accurate measurements independant of your skill level by
automatically detecting edges used in measurements.
The Optoeye 200 offers you the following benefits:
automatically detecting edges used in measurements.
The Optoeye 200 offers you the following benefits:
- OPTOEYE 200 reduces the effect of operator skill level on accuracy by automatically detecting edges used in measurements.
- PJ-H30: You can use the OPTOEYE edge detector on models PJ-H30A (requires adapter plate 12AAG983).
- PV-5110, PJ-3515F and PJ-A14: You can use the OPTOEYE edge detector in combination with the QM-Data 200.
- PJ-PLUS: You can use the OPTOEYE edge detector on models 302-801-10/302-802-10 in combination with the QM-Data 200.
- When you are using the OPTOEYE all projector scales must be connected to QM-Data 200 directly and built-in counters can no longer be used (except PJ-H30D type).
Technical information will be added shortly.
Application information will be added shortly.
Product videos and documents will be added shortly.
