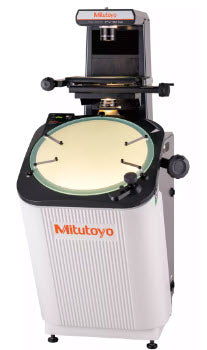

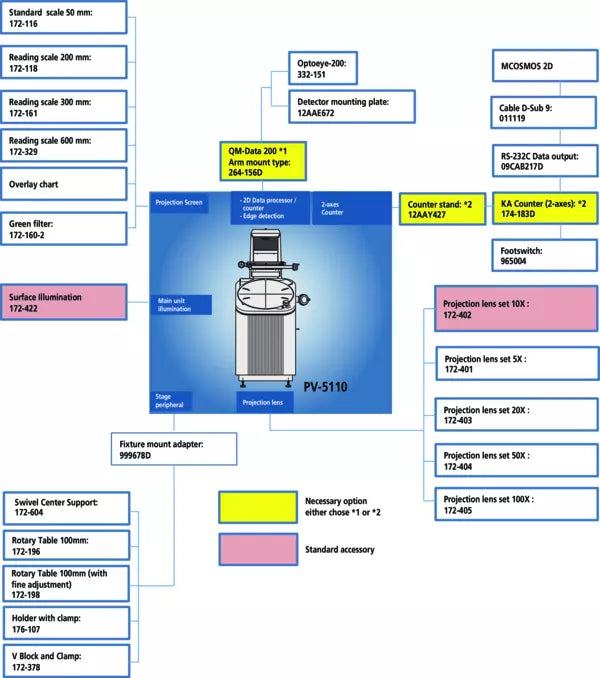

Mitutoyo SKU: 304-919-12
Price: €19,590.36 Excluding VAT

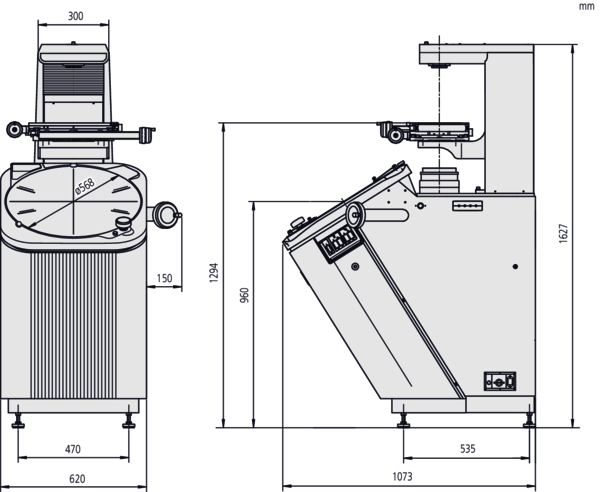

  • This measuring projector is a robust stand-alone device.
  • The large rotatable screen guarantees you good observation and easy measuring.
Specification
Measuring range XY:
200 x 100 mm
Projected image:
Inverted
Projector screen:
Effective diameter: 508 mm
Screen material: Fine-ground glass
Screen rotation: ±360°, fine adjustment and clamp
Angle reading: Digital counter (LED)
Resolution: 1' or 0.01° (switchable)
Range: ±370°ABS/INC mode switching, Zero Set
Reference lines : Cross-hairs
Projection lens:
10X (172-402)
Optional: 5X, 20X, 50X, 100X
Magnification accuracy:
Contour illumination: ±0.1% or better
Surface illumination: ±0.15% or better
Contor Illumination:
Light source: Halogen bulb (24V, 150W)
Optical system: Telecentric zoom
Functions: 2-step (High/Low) brightness switch, Heat-absorbing filter, Cooling fan
Surface illumination:
Light source: Halogen bulb (24V, 150W)
Optical system: Vertical illumination
Functions: Adjustable condenser lens, Oblique illumination (for 5X, 10X and 20X), Heat-absorbing filter, Cooling fan
Resolution:
0,001 mm
Model:
PV-5110
Power supply:
220 - 240V AC, 50/60Hz
XY stage [mm]:
200 x 100
Measuring method:
Linear encoder
XY stage table top size:
380 x 250 mm
XY stage effective area:
266 x 170 mm
Mass:
210 kg

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
