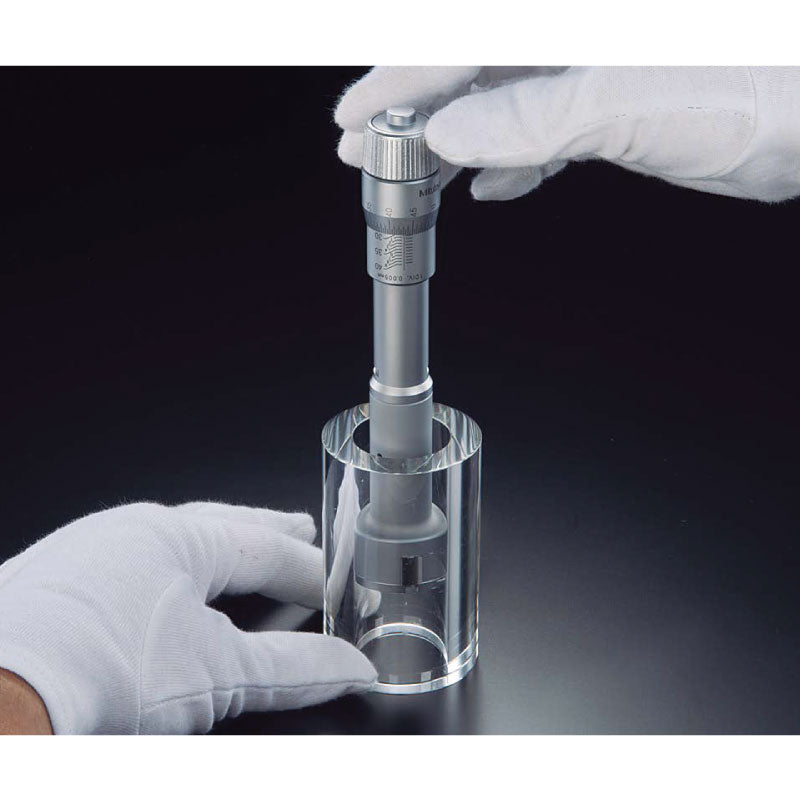

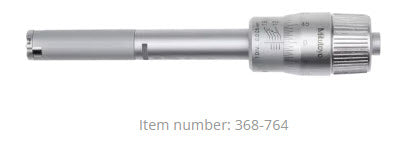

Mitutoyo; 3-Point Internal Micrometer

Holetest (Type II) Three-Point Bore Micrometer

  • Hardened tool-steel anvils (instead of titanium-coated carbide) allow a more economically priced tool.
  • Same accuracy as the titanium-coated models
  • Constant-force device allows repeatable measurements
  • Measurements can be made close to the bottom of a blind hole
  • Can measure deep holes using an extension rod (optional accessory)
  • Optional setting rings available - optional.

Optional extra - extension rod, part number 952621

Bore Gauge Features

  • Range: 12-16mm
  • Graduation: 0.005mm
  • Accuracy: ± 0.003mm
  • Spindle pitch: 0.5mm
  • Measuring face: Hardened Steel
  • Scale: Up to 12 mm : Ø 17 mm / Over 12 mm : Ø 23 mm
  • Mechanical
  • Metric
