Mitutoyo 3 Flute V-Anvil Micrometer 25-40mm 114-103

Mitutoyo SKU: 114-103
List price: €546.00 Offer price: €423.00 Excluding VAT

Optional Services

Supplied with a UKAS calibration certificate. Allow 7-10 working days for the calibration
Add your Gauge ID, asset/serial number, company name, logo or QR code.

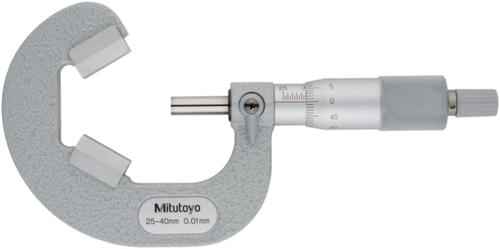

A Mitutoyo non-digital micrometer provided with a V-shaped anvil to enable measurement of 3-flute cutting tools, such as taps and reamers. A ratchet stop guarantees repeatable measurement.
Specification
Digital/Analog:
Analog
Delivered:

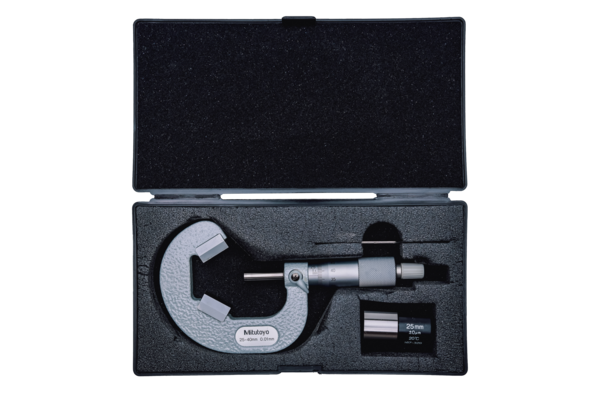

Including box, spanner, setting standard
Inch-Metric:
Metric
Range:
25 - 40 mm
Graduation:
0,01 mm
Max.
Permissible Error
J MPE:
±5 µm
Anvil:
Without groove
Measuring face:
Prism angle 60°/108°
Measuring spindle:
With spindle lock, ø6,35 mm, spindle pitch 0,75 mm
Scale:
Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:
5 - 10 N
Setting standard:
167-329 ø 25 mm
Delivered:
Including box, setting standard, key
Mass:
400 g

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
