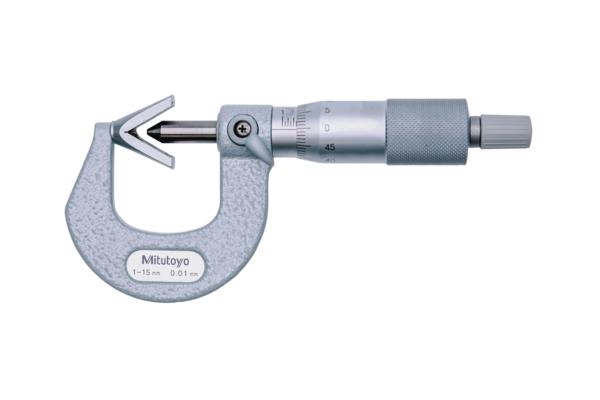

Mitutoyo 3 Flute V-Anvil Micrometer 1-15mm 114-161 Without groove

Roll over image to zoom in Click on image to zoom

Mitutoyo 3 Flute V-Anvil Micrometer 1-15mm 114-161 Without groove

Name: Mitutoyo 3 Flute V-Anvil Micrometer 1-15mm 114-161 Without groove
Brand: Mitutoyo
SKU: 114-161
Price: 359.0 EUR
Availability: InStock

MitutoyoSKU: 114-161

Price:

€359.00 €478.00

Quantity:

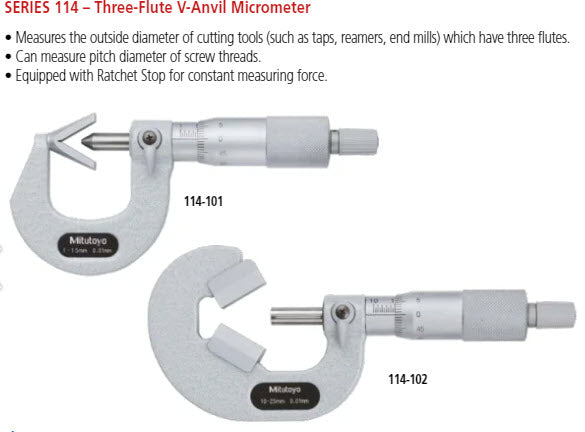

This V-Anvil Micrometer helps you measure cutting tools and taps.
It offers the following benefits:

It measures the outside diameter of cutting tools (such as taps, reamers, end mills) which have three or five flutes.

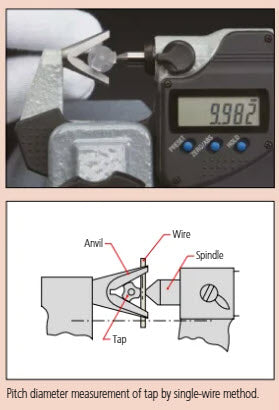

V-anvils with a centreline groove are available for measuring the pitch diameter of taps by the single-wire method.

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

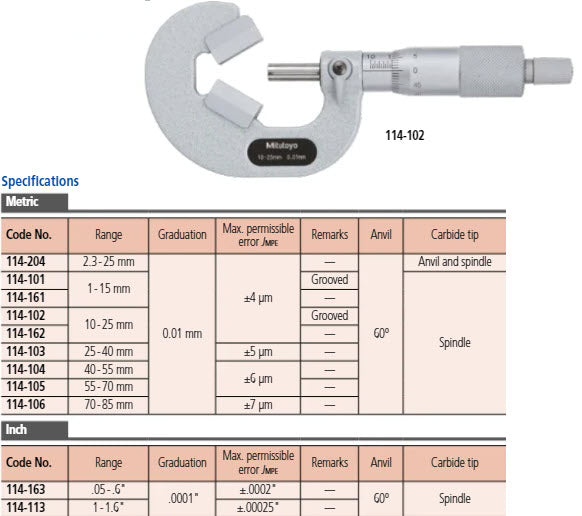

Product Information
Part Number	114-161
Measuring Range	1-15mm
Accuracy	["±.004mm"]
Graduation	.01mm
Accuracy	+/-.004mm
Unit of Measurement	Metric
Measuring Force	5-10N
Type	V-Anvil
Constant Force Device	Ratchet Stop
Anvils & Spindle Design	Anvil is 60 Degrees
Calibration Code	CAL9 B1

Digital/Analog:	Analog

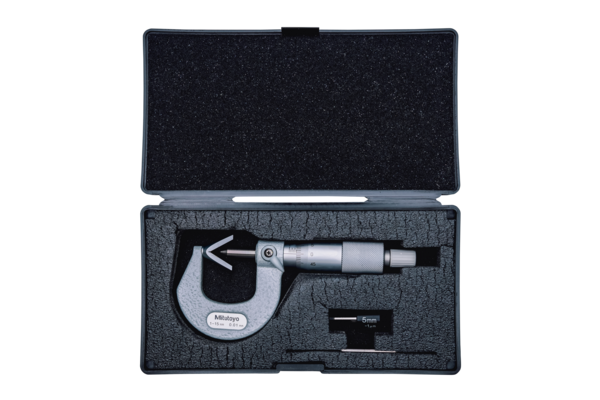

Delivered:	Including box, spanner, setting standard
Inch-Metric:	Metric
Range:	1 - 15 mm
Graduation:	0,01 mm
Max. Permissible Error J MPE:	±4 µm
Anvil:	Without groove

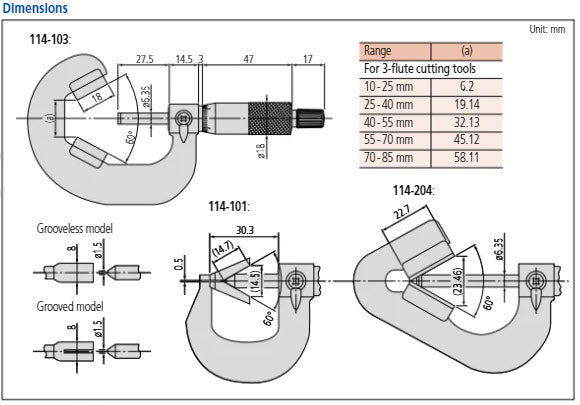

Measuring face:	Prism angle 60°/108°
Measuring spindle:	With spindle lock, ø6,35 mm, spindle pitch 0,75 mm
Scale:	Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:	5 - 10 N

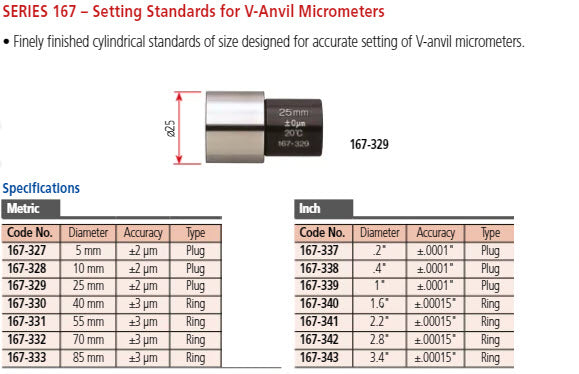

Setting standard:	167-327 ø 5 mm
Delivered:	Including box, setting standard, key
Mass:	120 g
