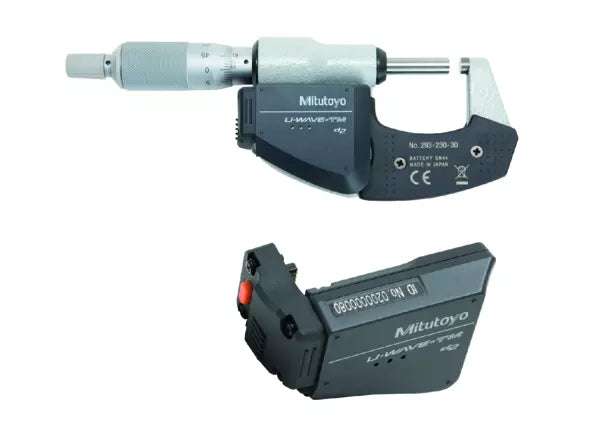

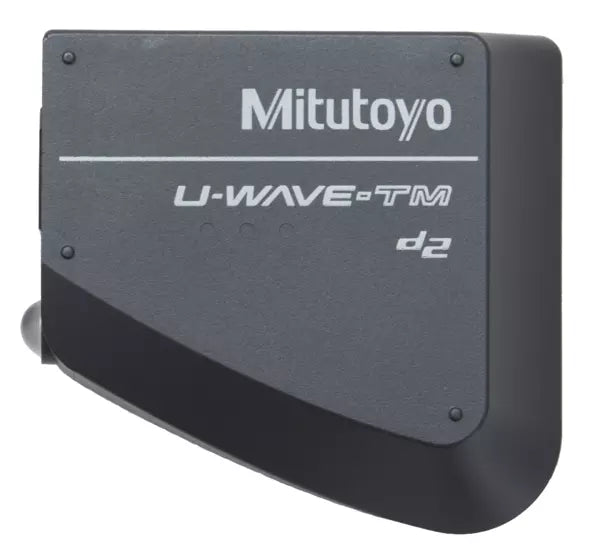

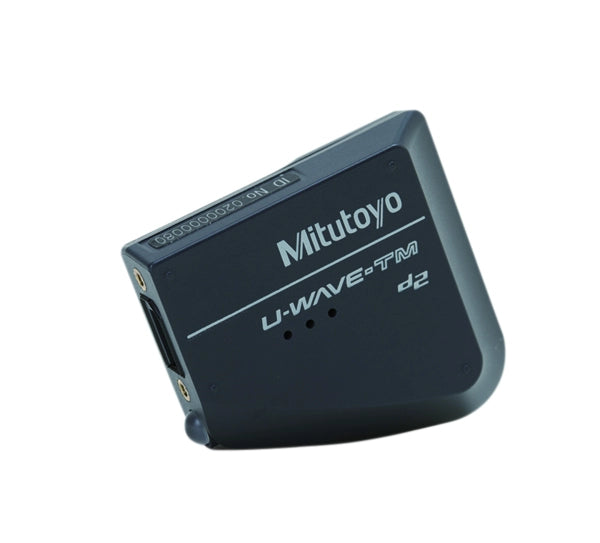

U-WAVE fit, Buzzer Type Wireless Transmitter for Micrometer/Indicator 264-623
U-WAVE fit, Buzzer Type Wireless Transmitter for Micrometer/Indicator 264-623
U-WAVE fit, Buzzer Type Wireless Transmitter for Micrometer/Indicator 264-623
Roll over image to zoom in Click on image to zoom
U-WAVE fit, Buzzer Type Wireless Transmitter for Micrometer/Indicator 264-623U-WAVE fit, Buzzer Type Wireless Transmitter for Micrometer/Indicator 264-623U-WAVE fit, Buzzer Type Wireless Transmitter for Micrometer/Indicator 264-623

U-WAVE fit, Buzzer Type Wireless Transmitter for Micrometer/Indicator 264-623

Mitutoyo SKU: 264-623
Price: €277.11 Excluding VAT
  • Approx. 20 m (within visible range).
  • Communication frequency: 2,4GHZ wireless system for reliable and secure data transmission.
  • Easy data export to Easy data export to Microsoft® Excel® or other professional SPC software applications like Mitutoyo MeasurLink.
  • Transmitter confirms data transfer by a buzzer sound or a red/green LED signal.
  • Low power consumption: 400.000 data transmissions with one battery.
  • U-WAVE Event will also support a data request from a PC. This is ideal if the system is installed at an inaccessible side.
Features
Wireless communication protocol:
Proprietary (2,4 GHz by original specification based on IEEE 802.15.4)
Modulation method:
DS-SS (Direct Sequence Spread Spectrum)
Measuring Instruments:
COOLANT PROOF (IP65)
micrometer, indicator
Remarks:
Standard
Data reception
indication:
Buzzer and LED
(green, red, orange)
Communication distance:
Approx. 20 m (within visible range)
Communication speed kbps:
250
Power supply:
Battery CR2032 x 1 pcs.
Communication with measuring tool:
Digimatic (6 digits), Digimatic 2 (8 digits) automatic identification
Communication frequency:
2,4 GHz band (2,405-2,475 GHz, 15 channels, 5 MHz interval)
Transmission output:
2,5 mW (4 dBm) or below
OS compatibility:
Windows® 2000 Professional (≥SP4),
Windows® XP Professional (≥SP2), Windows® XP Home Edition (≥SP2), Windows Vista®, Windows® 7 (32bit, 64bit), Windows® 8, 8. 1, 10 (32bit, 64bit), 11
Battery life:
Approx. 400000 transmissions
Delivered:
Including screwdriver, CR 2032 battery, key for battery case

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
