U-WAVE Fit, IP67 Type Wireless Transmitter for Caliper 264-620

Roll over image to zoom in Click on image to zoom

U-WAVE Fit, IP67 Type Wireless Transmitter for Caliper 264-620

Name: U-WAVE Fit, IP67 Type Wireless Transmitter for Caliper 264-620
Brand: Mitutoyo
SKU: 264-620
Price: 277.11 EUR
Availability: InStock

MitutoyoSKU: 264-620

Price:

€277.11

Quantity:

Approx. 20 m (within visible range).
Communication frequency: 2,4GHZ wireless system for reliable and secure data transmission.
Easy data export to Easy data export to Microsoft® Excel® or other professional SPC software applications like Mitutoyo MeasurLink.
Transmitter confirms data transfer by a buzzer sound or a red/green LED signal.
Low power consumption: 400.000 data transmissions with one battery.
U-WAVE Event will also support a data request from a PC. This is ideal if the system is installed at an inaccessible side.

Features

Wireless communication protocol:	Proprietary (2,4 GHz by original specification based on IEEE 802.15.4)
Modulation method:	DS-SS (Direct Sequence Spread Spectrum)

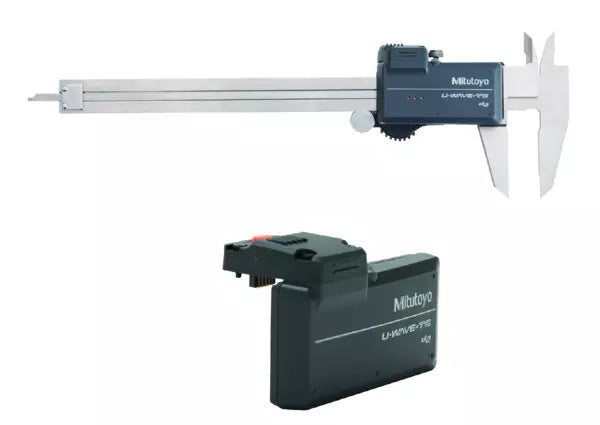

Measuring Instruments:	100, 150, 200, 300 mm IP67 caliper/standard caliper
Remarks:	IP67
Data reception indication:	LED (green, red, orange)
Communication distance:	Approx. 20 m (within visible range)
Communication speed kbps:	250
Power supply:	Battery CR2032 x 1 pcs.
Communication with measuring tool:	Digimatic (6 digits), Digimatic 2 (8 digits) automatic identification
Communication frequency:	2,4 GHz band (2,405-2,475 GHz, 15 channels, 5 MHz interval)
Transmission output:	2,5 mW (4 dBm) or below
OS compatibility:	Windows® 2000 Professional (≥SP4), Windows® XP Professional (≥SP2), Windows® XP Home Edition (≥SP2), Windows Vista®, Windows® 7 (32bit, 64bit), Windows® 8, 8. 1, 10 (32bit, 64bit), 11
Battery life:	Approx. 400000 transmissions
Delivered:	Including screwdriver, CR 2032 battery, key for battery case
