Mitutoyo 2-Point Internal Micrometer Holtest Set 4-8" (4 pcs.) 368-998

Roll over image to zoom in Click on image to zoom

Mitutoyo 2-Point Internal Micrometer Holtest Set 4-8" (4 pcs.) 368-998

Name: Mitutoyo 2-Point Internal Micrometer Holtest Set 4-8" (4 pcs.) 368-998
Brand: Mitutoyo
SKU: 368-998
Price: 3577.0 EUR
Availability: InStock

MitutoyoSKU: 368-998

Price:

€3,577.00 €4,900.00

Quantity:

A Mitutoyo internal micrometer set consisting of individual gauges, the appropriate setting rings and an extension tube for depth measurement applications. Contact surfaces made of hardened steel. A ratchet guarantees repeatable measurement.

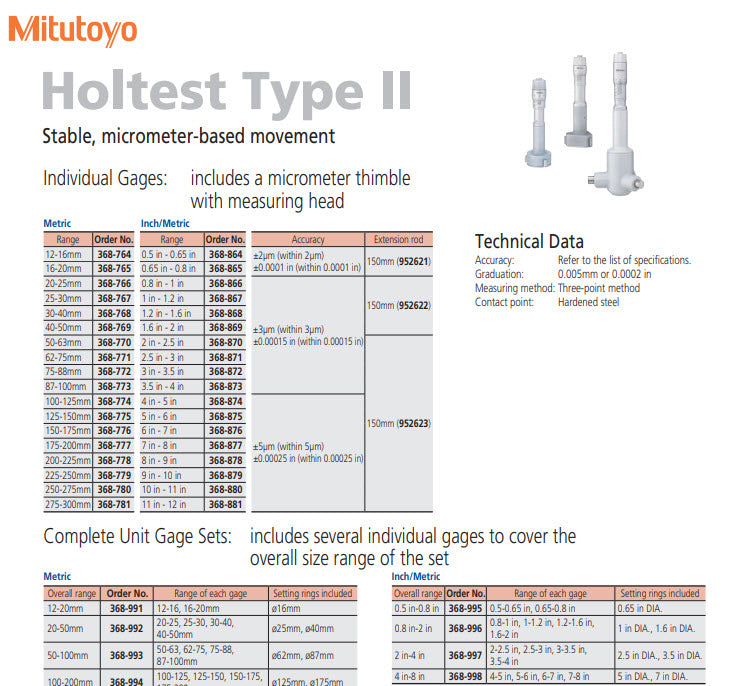

Specification

Digital/Analog:	Analog
Inch-Metric:	Inch
Range:	4 - 8 "
Graduation:	≤ 0,5": 0,0001", >0,5": 0,0002"
Individual ranges:	4-5" , 5-6" , 6-7" , 7-8"
Scale:	Thimble and sleeve satin chrome finish, Up to 12 mm : Ø 17 mm Over 12 mm : Ø 23 mm
Measuring spindle:	Spindle pitch 0,635 mm
Measuring face:	Hardened steel taper: hardened steel
Measuring method:	3-point

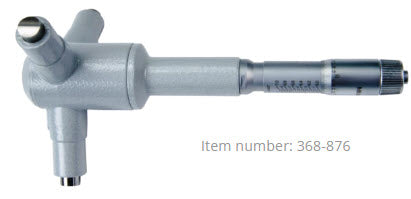

Models included:	368-874 / 368-875 / 368-876 / 368-877

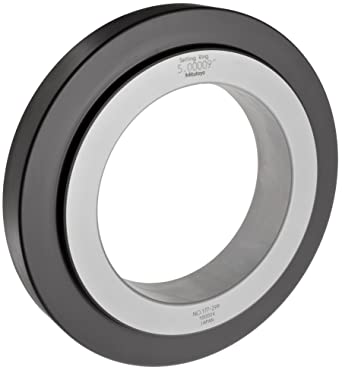

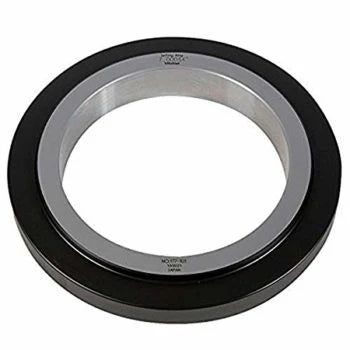

Setting rings included:	ø5" (177-299) ø7" (177-303)

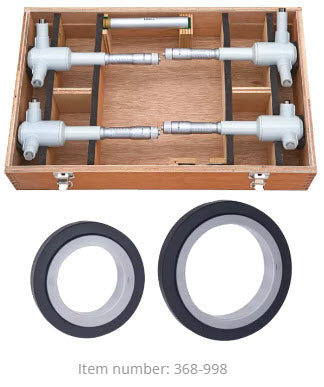

Delivered:	Including box, key, setting ring, extension rod, certificate of inspection (measuring instruments only)
Delivered:	Including box, spanner (2 pcs.), hex wrench, certificate of inspection, setting rings (2 pcs.), extension rod
Mass:	4630 g

Product Information
Part Number	368-998
Measuring Range	4-8"
Accuracy	["±.0003\""]
Graduation	.0002"
Accuracy	+/-.0003"
Unit of Measurement	Inch
Items Per Set	4
2 & 3 Point Micrometer Range	4-8"

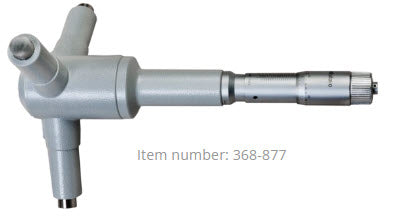

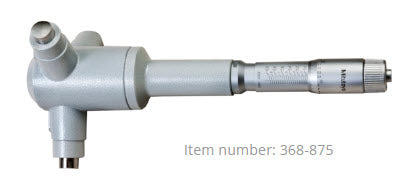

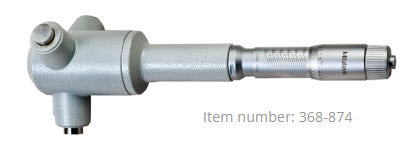

Contents	Set 368-998 consisting of the following 368-874 Micrometer range 4-5” 368-875 Micrometer 5-6” 368-876 Micrometer range 6-7” 368-877 Micrometer range 7-8” Setting Ring 177-299, 5” Setting Ring 177-303, 7” 6” Extension Rod 952623
