Mitutoyo 2-Point Internal Micrometer Holtest Set 0,8-2" (4 pcs.) 368-996

Roll over image to zoom in Click on image to zoom

Mitutoyo 2-Point Internal Micrometer Holtest Set 0,8-2" (4 pcs.) 368-996

Name: Mitutoyo 2-Point Internal Micrometer Holtest Set 0,8-2" (4 pcs.) 368-996
Brand: Mitutoyo
SKU: 368-996
Price: 1651.63 EUR
Availability: InStock

MitutoyoSKU: 368-996

Price:

€1,651.63 €2,262.50

Quantity:

A Mitutoyo internal micrometer set consisting of individual gauges, the appropriate setting rings and an extension tube for depth measurement applications. Contact surfaces made of hardened steel. A ratchet guarantees repeatable measurement.

Specification

Digital/Analog:	Analog
Inch-Metric:	Inch
Range:	0,8 - 2 "
Graduation:	≤ 0,5": 0,0001", >0,5": 0,0002"
Individual ranges:	0.8-1" , 1-1.2" , 1.2-1.6" , 1.6-2"
Scale:	Thimble and sleeve satin chrome finish, Up to 12 mm : Ø 17 mm Over 12 mm : Ø 23 mm
Measuring spindle:	Spindle pitch 0,635 mm
Measuring face:	Hardened steel taper: hardened steel
Measuring method:	3-point

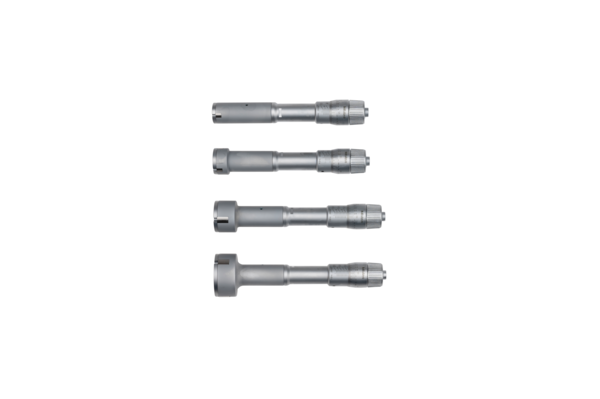

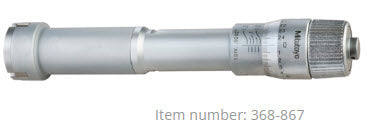

Models included:	368-866 / 368-867 / 368-868 / 368-869

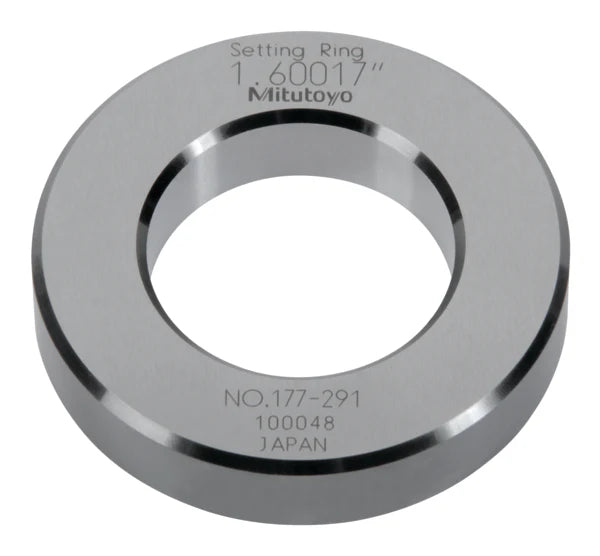

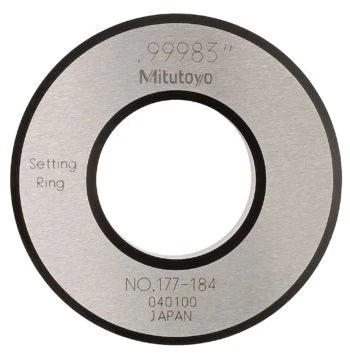

Setting rings included:	ø1" (177-184) ø1.6" (177-291)
Delivered:	Including box, key, setting ring, extension rod, certificate of inspection (measuring instruments only)
Delivered:	Including box, spanner (2 pcs.), hex wrench, certificate of inspection, setting rings (2 pcs.), extension rod
Mass:	960 g

Product Information
Part Number	368-996
Measuring Range	0,8-2"
Accuracy	["±.00015\""]
Graduation	.0002"
Accuracy	+/-.00015"
Unit of Measurement	Inch
Items Per Set	4
2 & 3 Point Micrometer Range	.8-2"

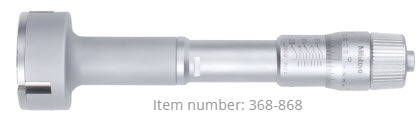

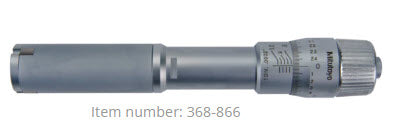

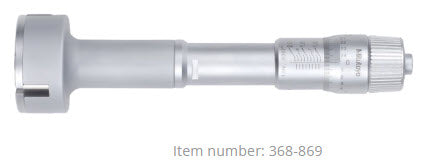

Contents	Set 368-996 consisting of the following 368-866 Micrometer range .8-1” 368-867 Micrometer range 1-1.2” 368-868 Micrometer range 1.2-1.6” 368-869 Micrometer range 1.6-2” Setting Ring 177-184 1” Setting Ring 177-291 1.6” 6” Extension Rod 952622
