Mitutoyo 2-Point Internal Micrometer Holtest Set 0,12-0,28" (3 pcs.) 368-927

Roll over image to zoom in Click on image to zoom

Mitutoyo 2-Point Internal Micrometer Holtest Set 0,12-0,28" (3 pcs.) 368-927

Name: Mitutoyo 2-Point Internal Micrometer Holtest Set 0,12-0,28" (3 pcs.) 368-927
Brand: Mitutoyo
SKU: 368-927
Price: 2774.0 EUR
Availability: InStock

MitutoyoSKU: 368-927

Price:

€2,774.00 €3,800.00

Quantity:

This is a set of three-point and two-point internal micrometers that offers you the following benefits:

Complete unit set.
Carbide measuring surface (2-6 mm range).
Titanium-coated measuring pins (>6 mm range) give you excellent durability and impact resistance.
Delivered with setting rings and extension rod (>6 mm range).

Product Information
Part Number	368-927
Measuring Range	0,12-0,28"
Accuracy	["±.0001\""]
Graduation	.0001"
Accuracy	+/-.0001"
Unit of Measurement	Inch
Items Per Set	3
2 & 3 Point Micrometer Range	.12-.28"

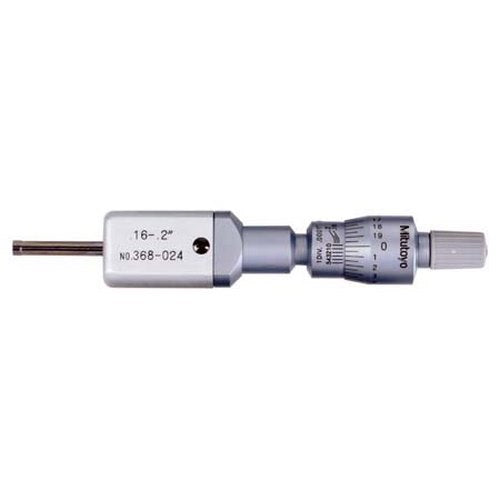

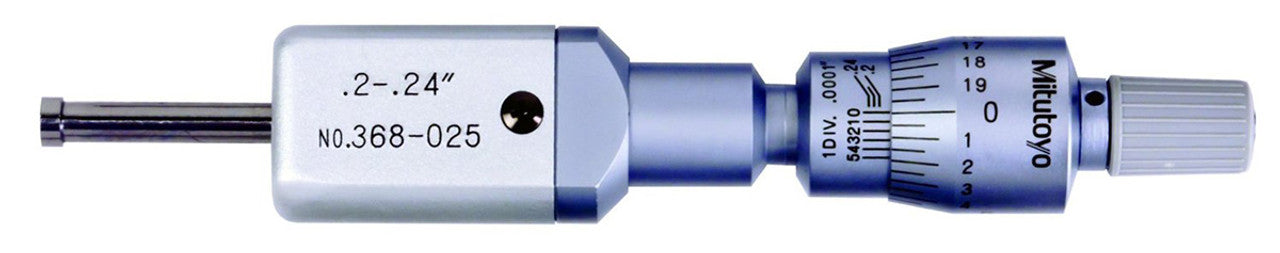

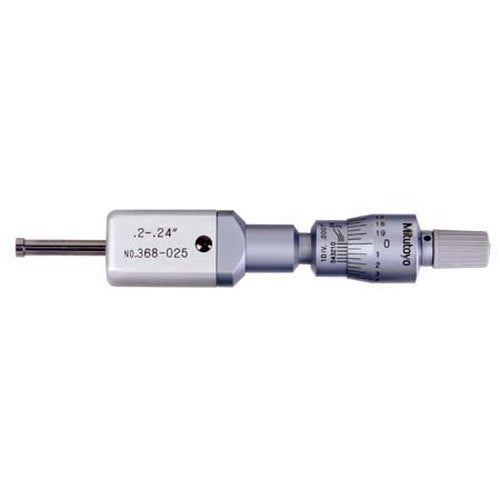

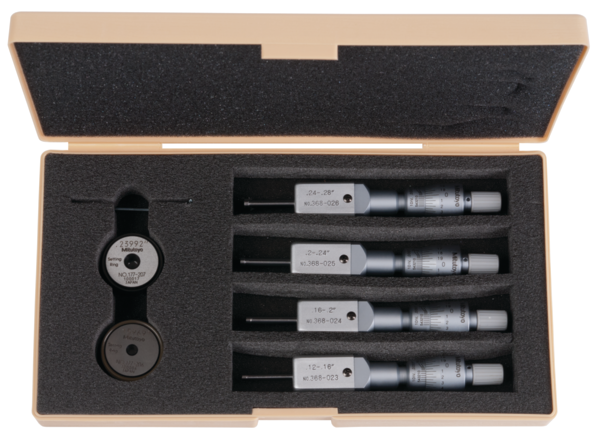

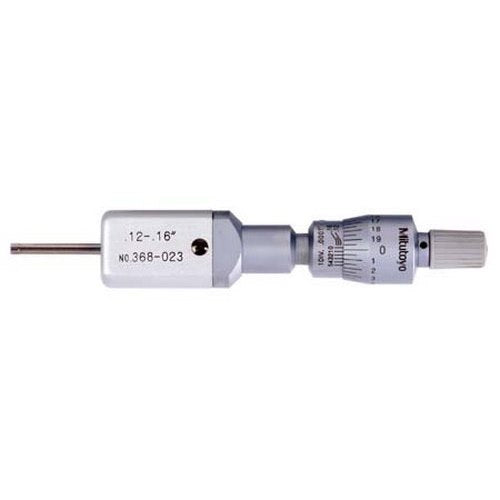

Contents	Set 368-927 consisting of the following 368-023 Micrometer range .12-.16” 368-024 Micrometer range .16-.2” 368-025 Micrometer range .2-.24” 368-024 Micrometer range .2.4-.28” Setting Ring 177-206, 0.16” Setting Ring 177-207, 0.24” Hex wrench

Digital/Analog:	Analog
Inch-Metric:	Inch
Range:	0,12 - 0,28 "
Graduation:	≤ 0,5": 0,0001", >0,5": 0,0002"
Individual ranges:	0.12-0.16", 0.16-0.2", 0.2-0.24", 0.24-0.28"
Scale:	Thimble and sleeve satin chrome finish, Up to 12 mm : ø 17 mm Over 12 mm : ø 23 mm
Measuring spindle:	Spindle pitch 0,635 mm
Measuring face:	Tungsten carbide
Measuring method:	2-point
Models included:	368-23 / 368-24 / 368-25

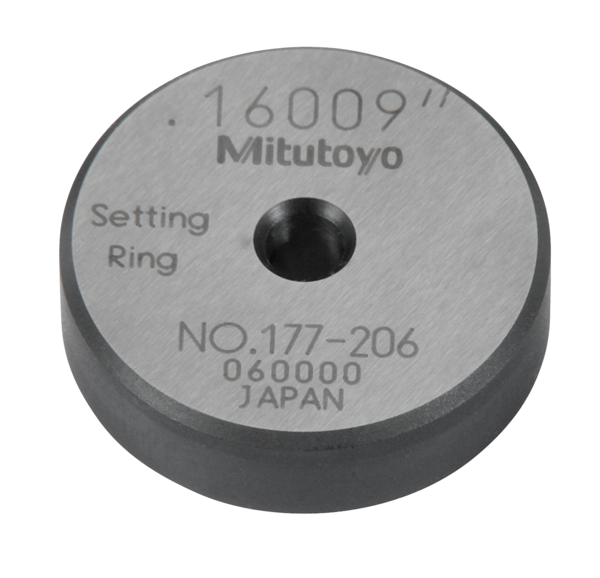

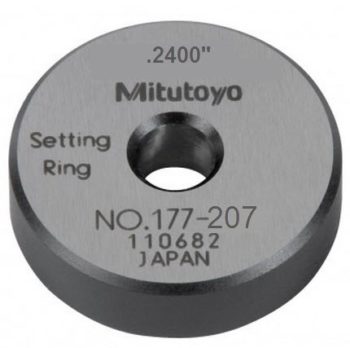

Setting rings included:	ø0.16 " (177-206) ø0.24" (177-207)

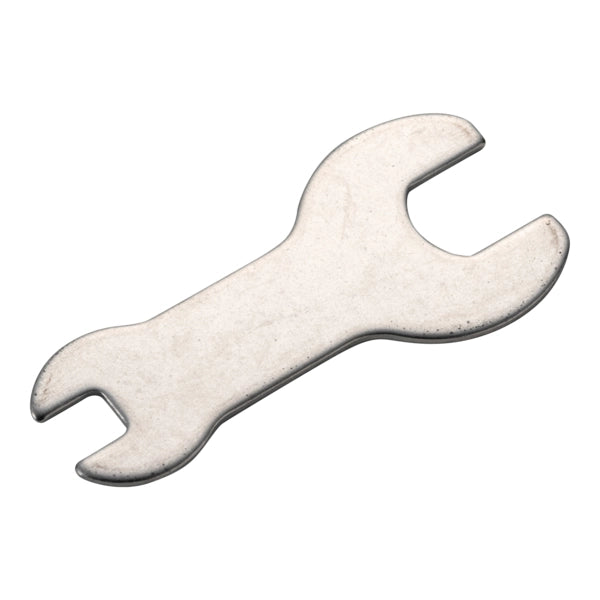

Delivered:	Including box, key, setting ring, certificate of inspection (measuring instruments only)

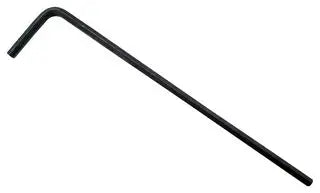

Delivered:	Including box, hex wrench, certificate of inspection, setting rings (2 pcs.)
Mass:	505 g
