Mitutoyo 2-Point Internal Micrometer Holtest 4-5mm 368-004

Mitutoyo SKU: 368-004
List price: €1,020.00 Offer price: €791.00 Excluding VAT

Optional Services

Supplied with a UKAS calibration certificate. Allow 7-10 working days for the calibration
Add your Gauge ID, asset/serial number, company name, logo or QR code.

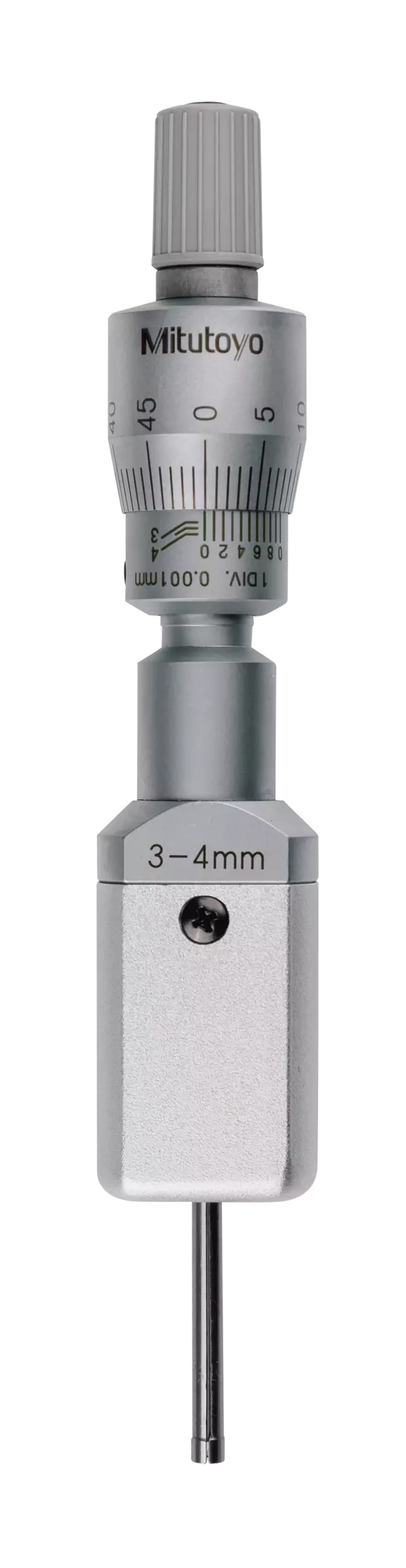

Mitutoyo; 2-Point Internal Micrometer

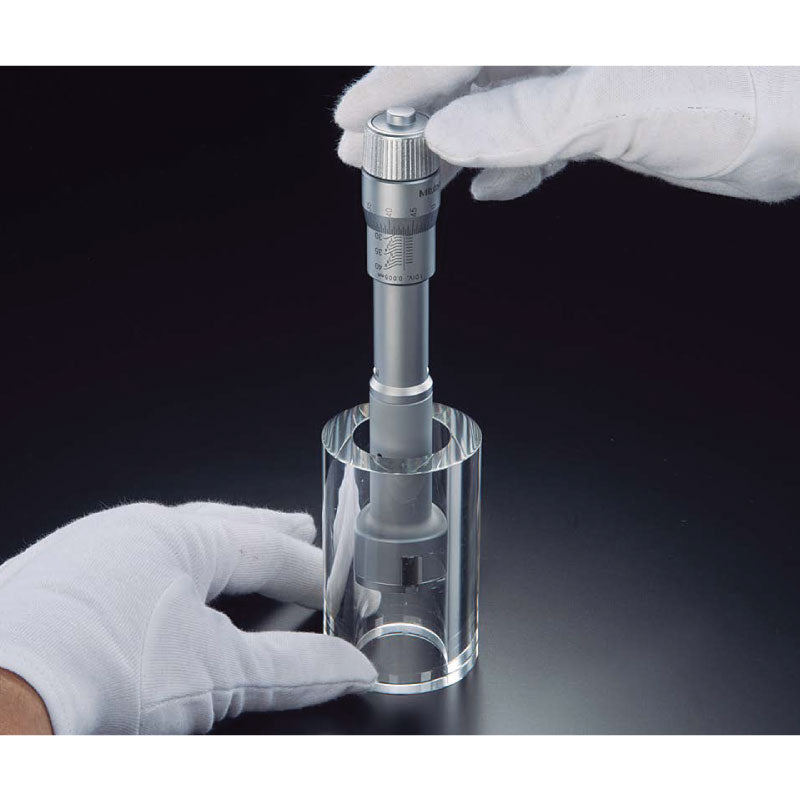

A non-digital 2-point Mitutoyo bore micrometer suitable for measuring the diameter of small holes. Hardened steel contact faces. Ratchet stop guarantees repeatable measurement. Steel setting rings (optional) are available for accurate setting prior to measurement.

Bore Gauge Features

  • Range: 4-5mm
  • Resolution: 0.001mm
  • Accuracy: ± 0.002mm
  • Spindle pitch: 0.5mm
  • Measuring face: Tungsten Carbide

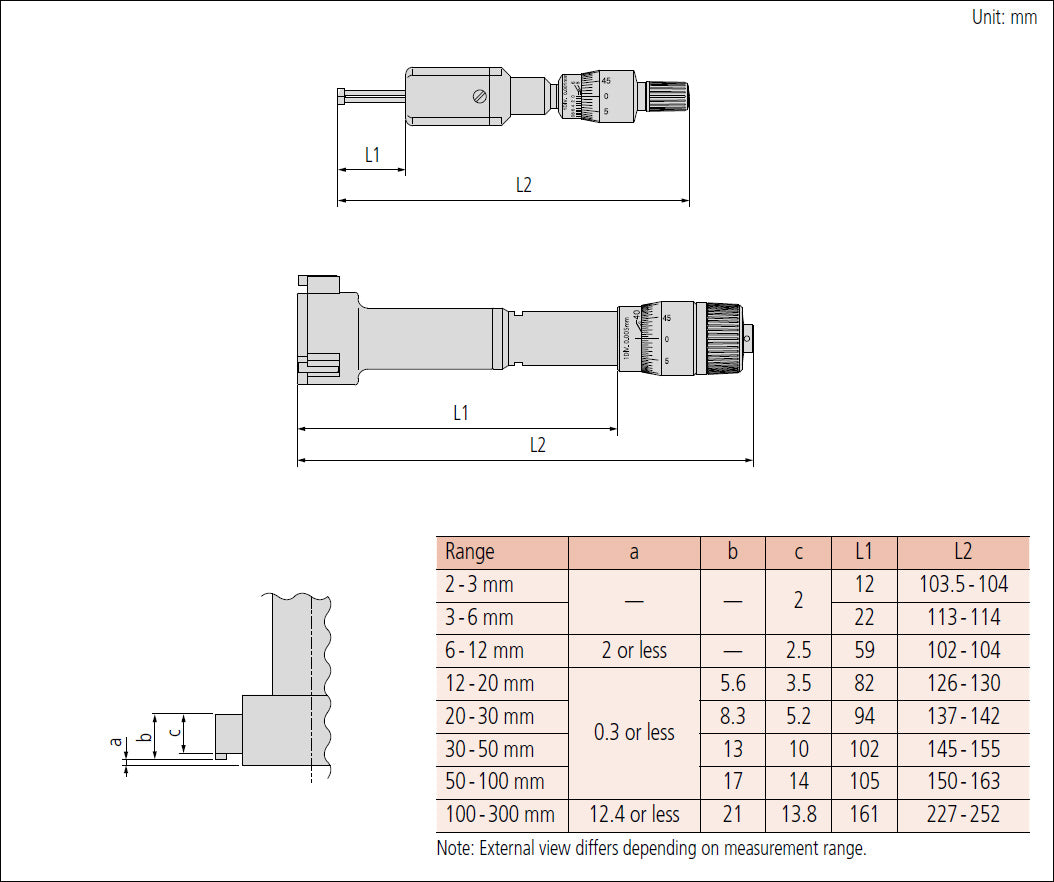

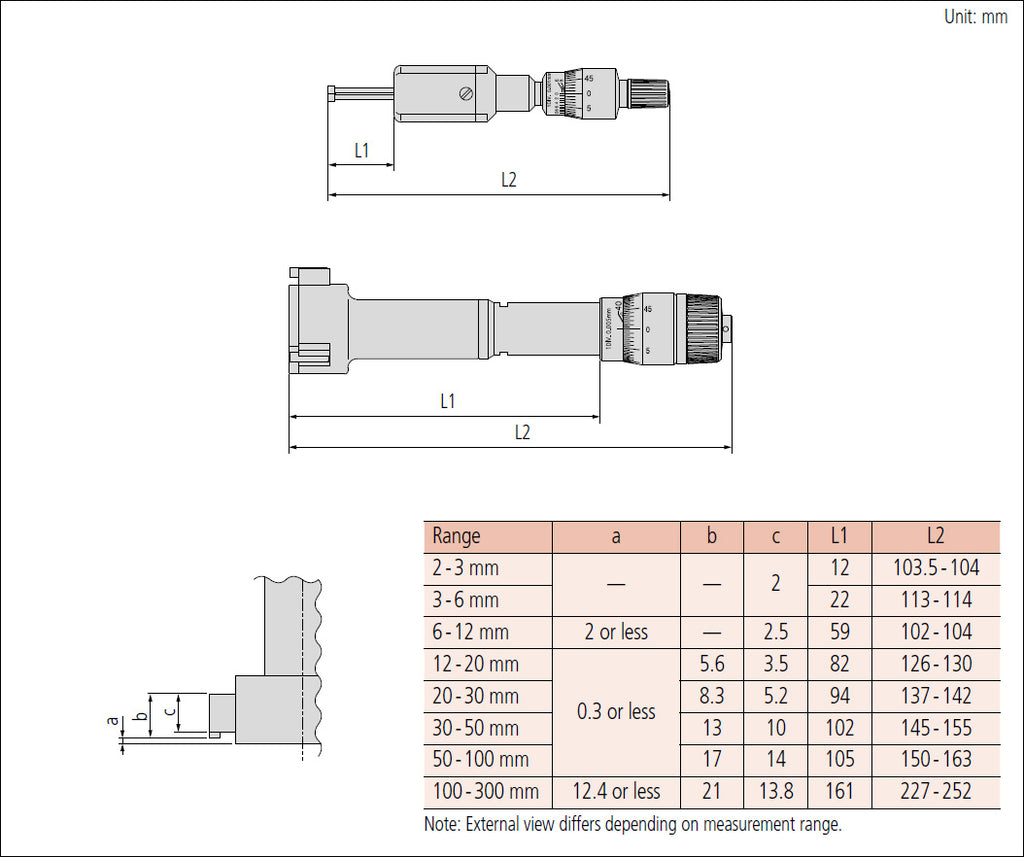

  • Scale: Up to 12 mm : Ø 17 mm / Over 12 mm : Ø 23 mm
  • Mechanical
  • Metric

All images are for representation only.

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document Mitutoyo 2-Point Internal Micrometer Holtest 4-5mm 368-004 Click to open the PDF document
