Mitutoyo 3-Point Internal Micrometer Holtest 6-8mm 368-161

Mitutoyo SKU: 368-161
List price: €401.00 Offer price: €311.00 Excluding VAT
Why Choose Inspection Equipment
Fast Dispatch Orders dispatched quickly from our extensive warehouse stock.
46 Years of Experience Established in 1980 with decades of metrology expertise.
Technical Support Experienced specialists available before and after your purchase.
25,000+ Products One of Ireland’s largest ranges of precision measurement equipment.
Expert Advice We will help you select the right instrument for your application.
Need help choosing the right product?

Mitutoyo; 3-Point Internal Micrometer

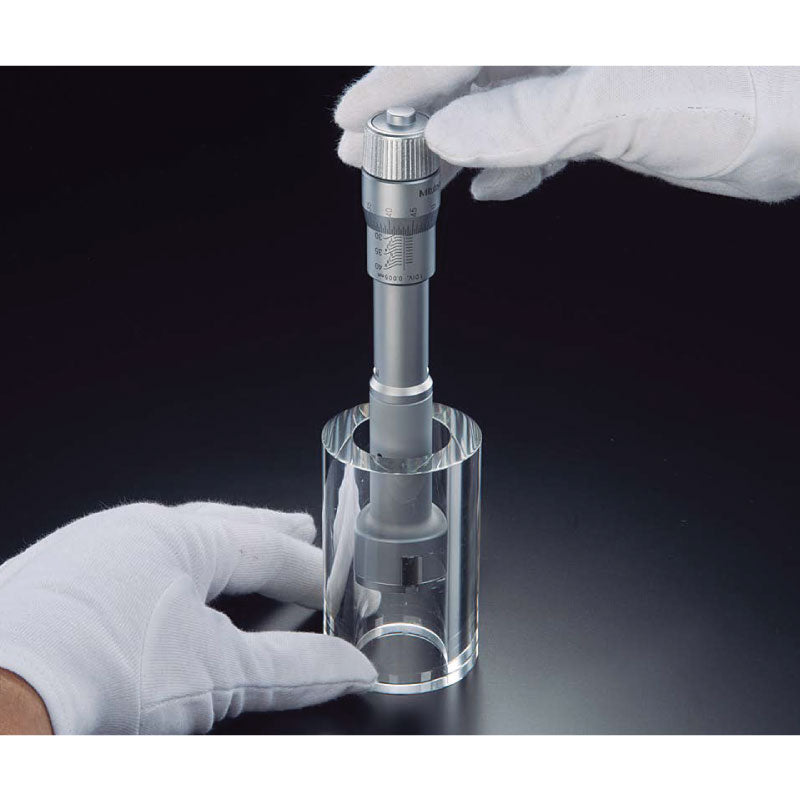

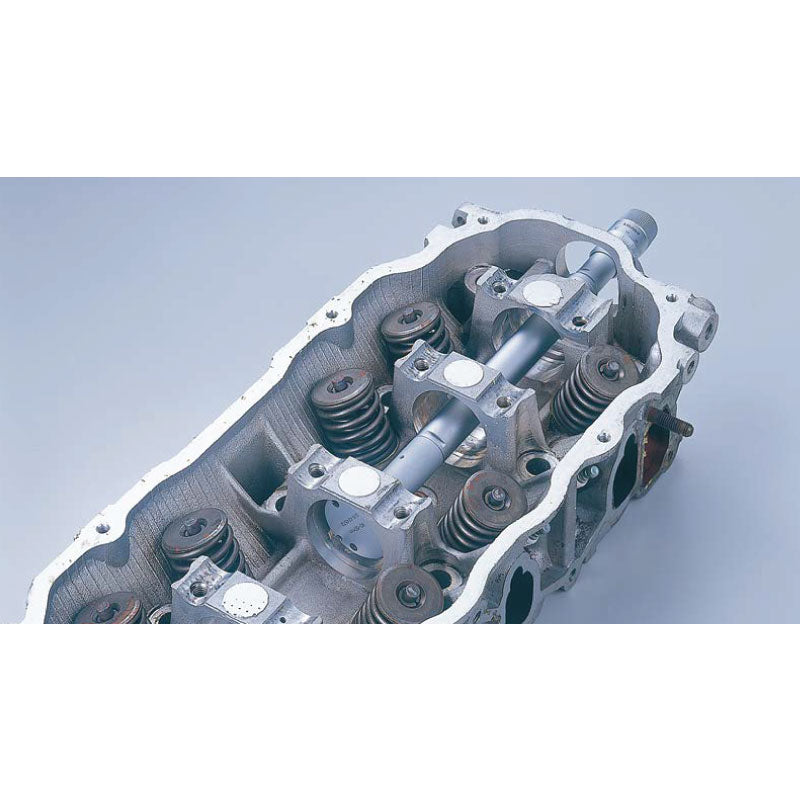

A non-digital 3-point Mitutoyo bore micrometer with titanium-coated measuring pins. The 3-point design enables stable measurement through automatic centering. The maximum measuring depth can be increased by 100mm using an optional extension rod if required. Ratchet stop guarantees repeatable measurement. Steel setting rings (optional) are available for accurate setting prior to measurement.

Optional extra - extension rod, part number 952322

Bore Gauge Features

  • Range: 6-8mm
  • Resolution: 0.001mm
  • Accuracy: ± 0.002mm
  • Spindle pitch: 0.5mm
  • Measuring face: Tungsten Carbide
  • Scale: Up to 12 mm : Ø 17 mm / Over 12 mm : Ø 23 mm
  • Mechanical
  • Metric
