2-Point Inside Measuring Instrument set no 511-935-10 Range .7-6"Digital Indicator 543-321B
2-Point Inside Measuring Instrument set no 511-935-10 Range .7-6"Digital Indicator 543-321B
2-Point Inside Measuring Instrument set no 511-935-10 Range .7-6"Digital Indicator 543-321B
Roll over image to zoom in Click on image to zoom
2-Point Inside Measuring Instrument set no 511-935-10 Range .7-6"Digital Indicator 543-321B2-Point Inside Measuring Instrument set no 511-935-10 Range .7-6"Digital Indicator 543-321B2-Point Inside Measuring Instrument set no 511-935-10 Range .7-6"Digital Indicator 543-321B

2-Point Inside Measuring Instrument set no 511-935-10 Range .7-6"Digital Indicator 543-321B

Mitutoyo SKU: 511-935-10
List price: €1,120.00 Offer price: €868.00 Excluding VAT
Why Choose Inspection Equipment
Fast Dispatch Orders dispatched quickly from our extensive warehouse stock.
46 Years of Experience Established in 1980 with decades of metrology expertise.
Technical Support Experienced specialists available before and after your purchase.
25,000+ Products One of Ireland’s largest ranges of precision measurement equipment.
Expert Advice We will help you select the right instrument for your application.
Need help choosing the right product?
This is a wide range application set of Bore Gauges that automatically self-centres via a centring bridge and offers you the following benefits:
  • Carbide for the contact point ensuring high durability and wear resistance
  • It reduces the influence of heat from the operator's hand by 50% by making the grip hollow structured, thereby retaining high accuracy measurement.

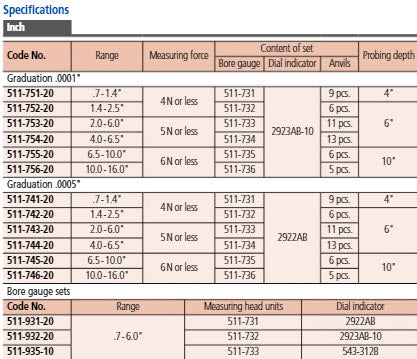

Specification
Inch-Metric:
Inch/Metric
Range:
0.7 - 6 "/18-150mm
Stroke of contact point:
0.063
No. Dial Indicator:

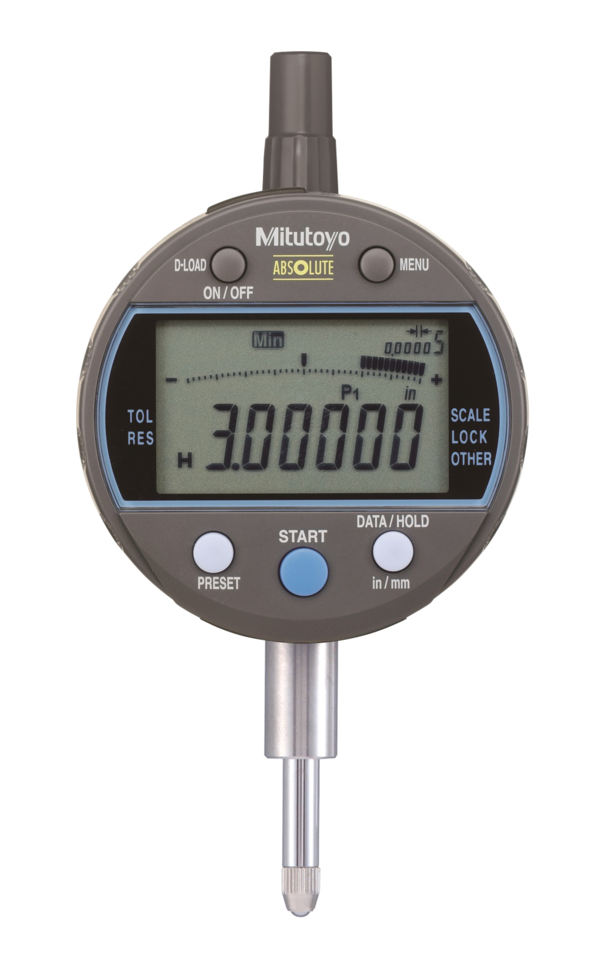

543-312B-10
Accuracy:
2 µm
Repeatability:
0.5 µm
Digital/Analog:
Digital
Mass:
830
Delivered:

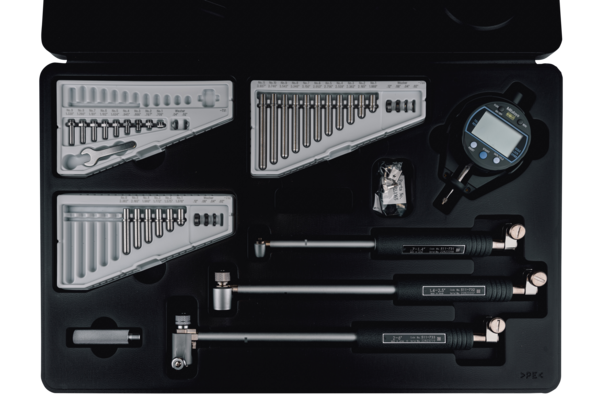

In a box with bore gauge 511-731 / 511-732 / 511-733, digital indicator 543-312B-10, plastic cover for indicator 21DZA000, 26 anvils, 10 washers, 1 sub-anvil, spanner 102148

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
