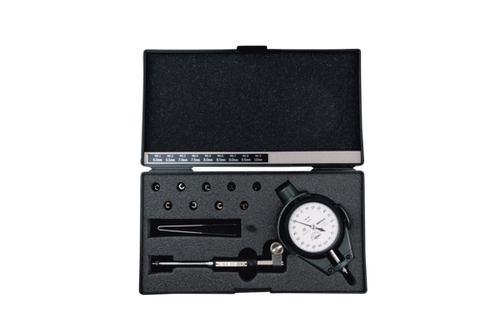

2-Point Inside Measuring Instrument Bore Gauge, .4-.74", Graduation .0001" 511-206-20

Roll over image to zoom in Click on image to zoom

2-Point Inside Measuring Instrument Bore Gauge, .4-.74", Graduation .0001" 511-206-20

Name: 2-Point Inside Measuring Instrument Bore Gauge, .4-.74", Graduation .0001" 511-206-20
Brand: Mitutoyo
SKU: 511-206-20
Price: 387.0 EUR
Availability: InStock

MitutoyoSKU: 511-206-20

Price:

€387.00 €520.00

Quantity:

These are bore gauges that automatically self-centre via a centring bridge.
They offer you the following benefits:

A long plunger stroke gives you amazing accuracy.
Interchangeable washers 0.5 mm thick are supplied as standard accessories, so you can enable setting in small steps.
Contact points are carbide (>18 mm range), giving you high durability and wear resistance.

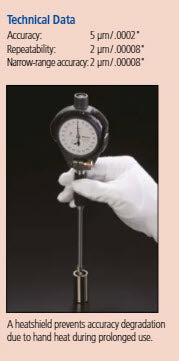

A large grip reduces heat transfer from the operator by 50%.

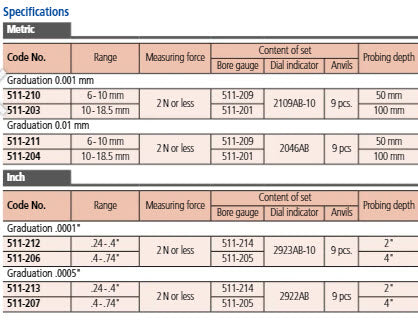

Product Information
Part Number	511-206-20
Measuring Range	0.4-0.74"
Accuracy	["±.0002\""]
Graduation	.0001"
Accuracy	+/-.0002"
Unit of Measurement	Inch
Display Type	Analogue
Items Per Set	9
Measuring Force	≤2N
Repeatability	.00008"
Probing Depth	4"

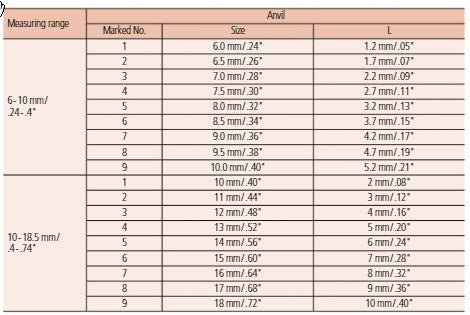

Anvils	Anvil Size No 1, 10mm/.4" Length 2mm/.08", Anvil Size No 2, 11mm/.44" Length 3mm/.12", Anvil Size No 3, 12mm/.48" Length 4mm/.1" Length 3mm/.16", Anvil Size No 4, 13mm/.52" Length 5mm/.20, Anvil Size No 5, 14mm/.56", Length 6mm/.24", Anvil Size No 6, 15mm/.6", Length 7mm/.28", Anvil Size No 7, 16mm/.64", Length 8mm/.32", Anvil Size No 8, 17mm/.68", Length 9mm/.36", Anvil Size No 9, 18mm/.72", Length 10mm/.40"

Inch-Metric:	Inch
Digital/Analog:	Analog
Range:	0.4-0.7 "
Graduation:	0,0001"
Stroke of contact point:	0.5 mm
Measuring depth:	2"
No. Dial Indicator:	2923AB-10
Number of anvils:	9
Accuracy:	5 µm
Repeatability:	2 µm
Measuring force:	≤2 N

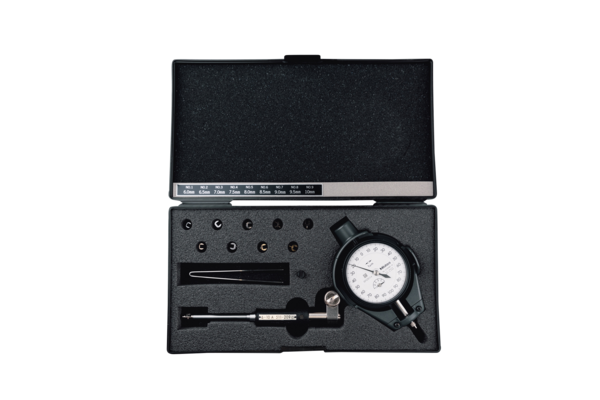

Delivered:	In a box with bore gauge 511-214, dial indicator 2923AB-10, plastic cover for indicator 21DZA000, 9 anvils
Mass:	260 g
