2-Point Inside Measuring Instrument Bore Gauge, 10-18.5mm, Graduation 0,01mm 511-204-20

Roll over image to zoom in Click on image to zoom

2-Point Inside Measuring Instrument Bore Gauge, 10-18.5mm, Graduation 0,01mm 511-204-20

Name: 2-Point Inside Measuring Instrument Bore Gauge, 10-18.5mm, Graduation 0,01mm 511-204-20
Brand: Mitutoyo
SKU: 511-204-20
Price: 409.0 EUR
Availability: InStock

MitutoyoSKU: 511-204-20

Price:

€409.00 €544.58

Quantity:

These are bore gauges that automatically self-centre via a centring bridge.
They offer you the following benefits:

A long plunger stroke gives you amazing accuracy.
Interchangeable washers 0.5 mm thick are supplied as standard accessories, so you can enable setting in small steps.
Contact points are carbide (>18 mm range), giving you high durability and wear resistance.

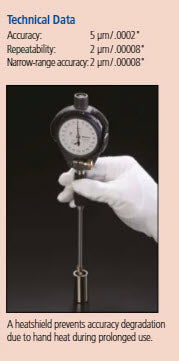

A large grip reduces heat transfer from the operator by 50%.

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

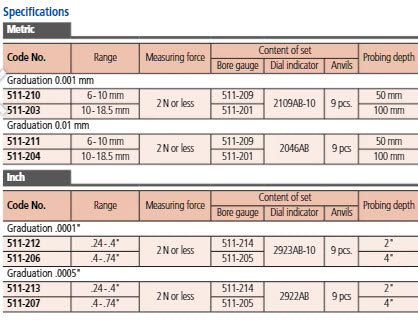

Product Information
Part Number	511-204-20
Measuring Range	10-18.5mm
Accuracy	["±.005mm"]
Graduation	.01mm
Accuracy	+/-.005mm
Unit of Measurement	Metric
Display Type	Analogue
Items Per Set	9
Measuring Force	≤2N
Repeatability	.002mm
Probing Depth	100mm

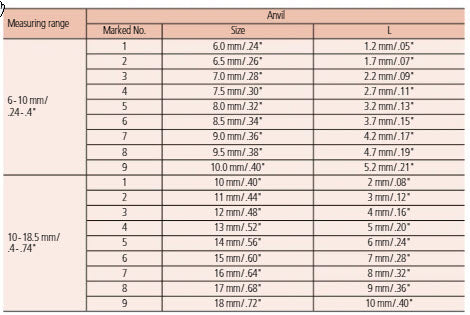

Anvils	Anvil Size No 1, 6mm/.24" Length 1.2mm/.05", Anvil Size No 2 6.5mm/.26" Length 1.7mm/.07", Anvil Size No 3, 7mm/.28" Length 2.2mm/.09", Anvil Size No 4, 7.5mm/.3" Length 2.7mm/.11", Anvil Size No 5, 8mm/.32" Length 3.2mm/.13", Anvil Size No 6, 8.5mm/.32" Length 3.2mm/.13", Anvil Size No 7, 9mm/.36" Length 4.2mm/.17", Anvil Size No 8, 9.5mm/.36" Length 4.7mm/.19", Anvil Size No 9, 10mm/.4" Length 5.2mm/.21"

Inch-Metric:	Metric
Digital/Analog:	Analog
Range:	10-18.5mm
Graduation:	0.01 mm
Stroke of contact point:	0.5 mm
Measuring depth:	100mm
No. Dial Indicator:	2046AB
Number of anvils:	9
Accuracy:	5 µm
Repeatability:	2 µm
Measuring force:	≤2 N

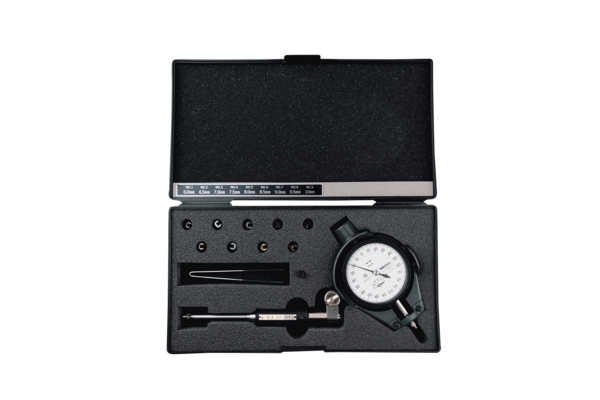

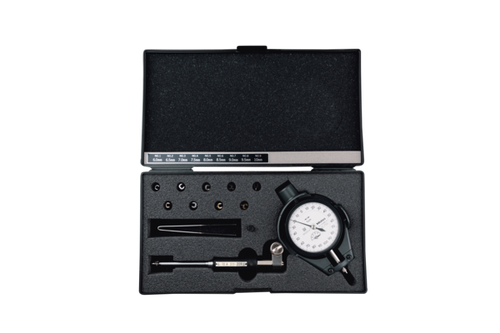

Delivered:	In a box with bore gauge 511-209, dial indicator 2046AB, plastic cover for indicator 21DZA000, 9 anvils
Mass:	255 g
