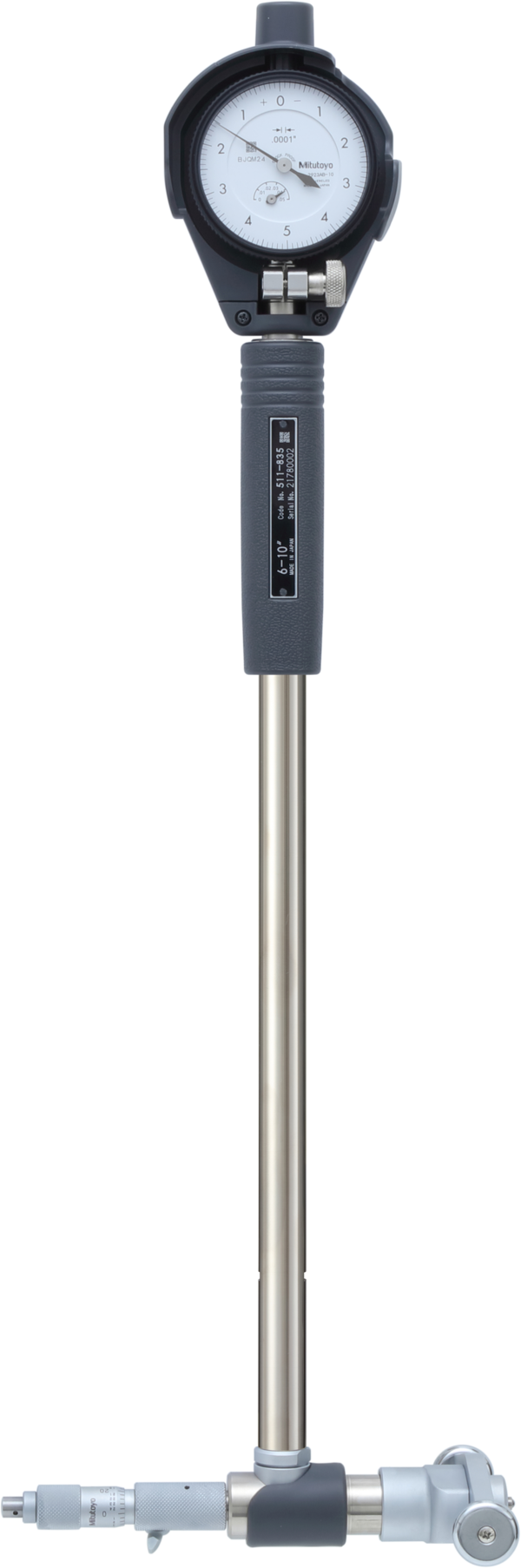

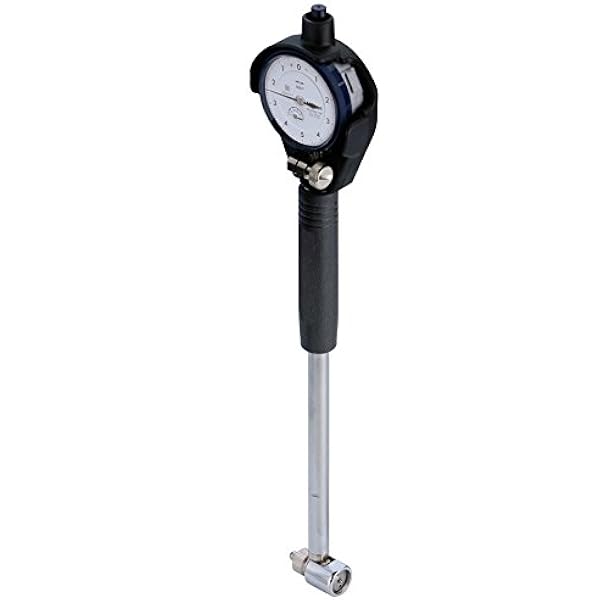

Mitutoyo 2-Point Inside Measuring Instrument Range 10-16" Graduation .0001" With Micrometer Head 511-856-20

Roll over image to zoom in Click on image to zoom

Mitutoyo 2-Point Inside Measuring Instrument Range 10-16" Graduation .0001" With Micrometer Head 511-856-20

Name: Mitutoyo 2-Point Inside Measuring Instrument Range 10-16" Graduation .0001" With Micrometer Head 511-856-20
Brand: Mitutoyo
SKU: 511-856-20
Price: 700.0 EUR
Availability: InStock

MitutoyoSKU: 511-856-20

Price:

€700.00 €932.53

Quantity:

This is a micrometer head that enables measurements without interchangeable anvils.
It offers you the following benefits:

A long plunger stroke gives you amazing accuracy.
Contact points are carbide (>18 mm range), giving you high durability and wear resistance.
A large grip reduces heat transfer from the operator by 50%.
Wide measuring range with sub-anvils.

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

Product Information
Part Number	511-856-20
Measuring Range	10-16"
Accuracy	["±.0001\""]
Graduation	.0001"
Accuracy	+/-.0001"
Unit of Measurement	Inch
Display Type	Analogue
Items Per Set	3
Repeatability	.00002"
Probing Depth	6"
Anvils	3pcs

Digital/Analog:	Analog
Inch-Metric:	Inch
Range:	10-16"
Graduation:	0.0001"
Measuring depth:	6"
No. Dial Indicator:	2923AB-10
Micrometer Head stroke:	0.5"
Accuracy:	2 µm
Repeatability:	0,5 µm
Sub anvils:	0.4, 0.8, 0.8, 2"

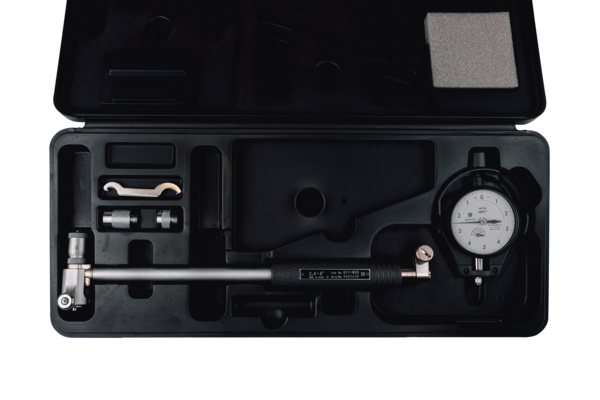

Delivered:	In a box with bore gauge 511-855, dial indicator 2923AB-10, plastic cover for indicator 21DZA000, 4 sub-anvils, 2 spanner 301336
Mass:	850 g
