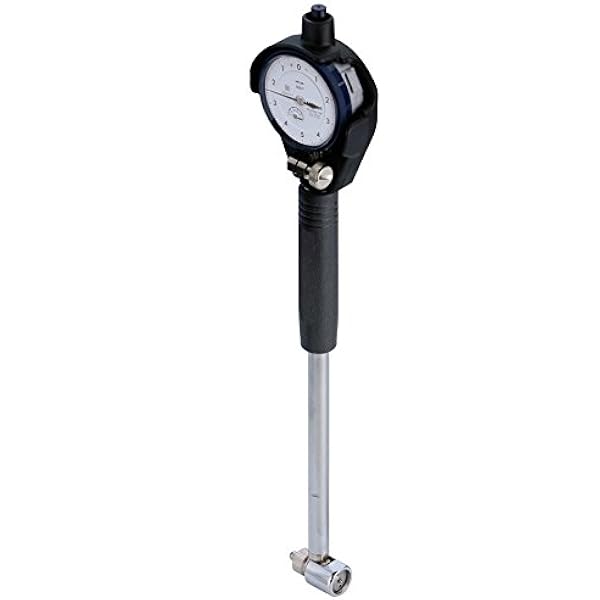

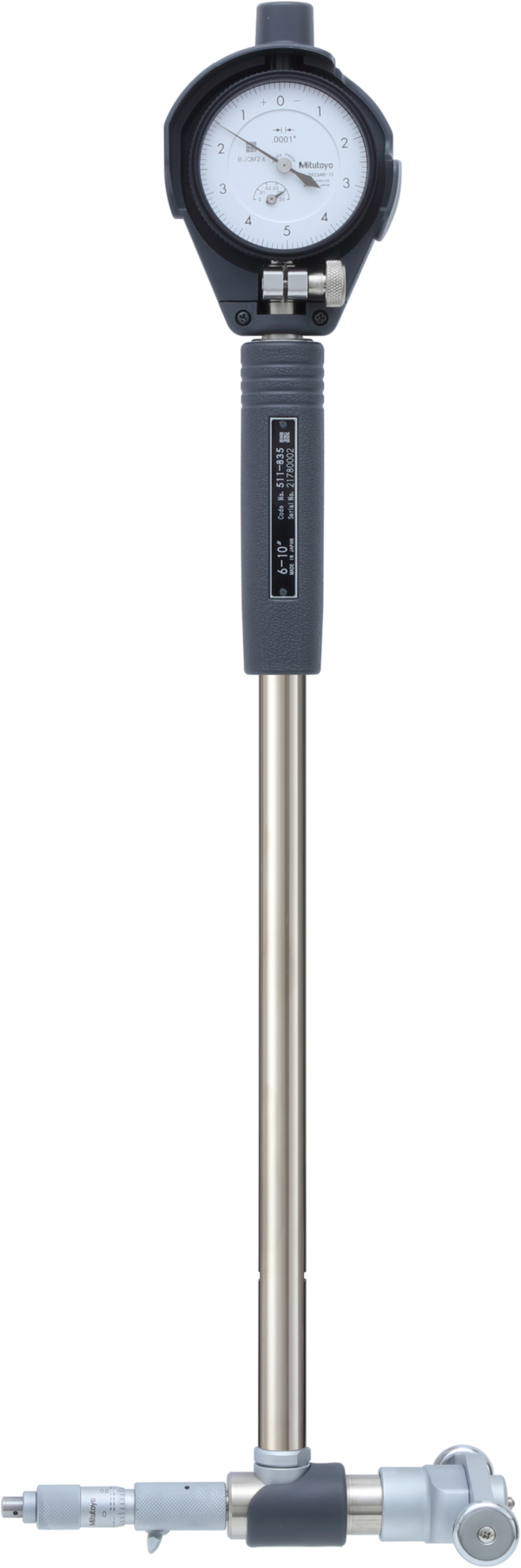

Mitutoyo 2-Point Inside Measuring Instrument Range 6-10" Graduation .0005" With Micrometer Head 511-845-20
Mitutoyo 2-Point Inside Measuring Instrument Range 6-10" Graduation .0005" With Micrometer Head 511-845-20
Mitutoyo 2-Point Inside Measuring Instrument Range 6-10" Graduation .0005" With Micrometer Head 511-845-20
Mitutoyo 2-Point Inside Measuring Instrument Range 6-10" Graduation .0005" With Micrometer Head 511-845-20
Mitutoyo 2-Point Inside Measuring Instrument Range 6-10" Graduation .0005" With Micrometer Head 511-845-20
Mitutoyo 2-Point Inside Measuring Instrument Range 6-10" Graduation .0005" With Micrometer Head 511-845-20
Mitutoyo 2-Point Inside Measuring Instrument Range 6-10" Graduation .0005" With Micrometer Head 511-845-20
Roll over image to zoom in Click on image to zoom
Mitutoyo 2-Point Inside Measuring Instrument Range 6-10" Graduation .0005" With Micrometer Head 511-845-20Mitutoyo 2-Point Inside Measuring Instrument Range 6-10" Graduation .0005" With Micrometer Head 511-845-20Mitutoyo 2-Point Inside Measuring Instrument Range 6-10" Graduation .0005" With Micrometer Head 511-845-20Mitutoyo 2-Point Inside Measuring Instrument Range 6-10" Graduation .0005" With Micrometer Head 511-845-20Mitutoyo 2-Point Inside Measuring Instrument Range 6-10" Graduation .0005" With Micrometer Head 511-845-20Mitutoyo 2-Point Inside Measuring Instrument Range 6-10" Graduation .0005" With Micrometer Head 511-845-20Mitutoyo 2-Point Inside Measuring Instrument Range 6-10" Graduation .0005" With Micrometer Head 511-845-20

Mitutoyo 2-Point Inside Measuring Instrument Range 6-10" Graduation .0005" With Micrometer Head 511-845-20

Mitutoyo SKU: 511-845-20
List price: €778.00 Offer price: €603.00 Excluding VAT
Why Choose Inspection Equipment
Fast Dispatch Orders dispatched quickly from our extensive warehouse stock.
46 Years of Experience Established in 1980 with decades of metrology expertise.
Technical Support Experienced specialists available before and after your purchase.
25,000+ Products One of Ireland’s largest ranges of precision measurement equipment.
Expert Advice We will help you select the right instrument for your application.
Need help choosing the right product?
This is a micrometer head that enables measurements without interchangeable anvils.
It offers you the following benefits:
  • A long plunger stroke gives you amazing accuracy.
  • Contact points are carbide (>18 mm range), giving you high durability and wear resistance.
  • A large grip reduces heat transfer from the operator by 50%.
  • Wide measuring range with sub-anvils.
Features
Digital/Analog:
Analog
Inch-Metric:
Inch
Range:
6 - 10 "
Graduation:
0.0005"
Measuring depth:
6"
No. Dial Indicator:
22922AB
Micrometer
Head stroke:
0.5"
Accuracy:
2 µm
Repeatability:
0,5 µm
Sub anvils:
0.4, 0.8, 0.8, 2"
Delivered:

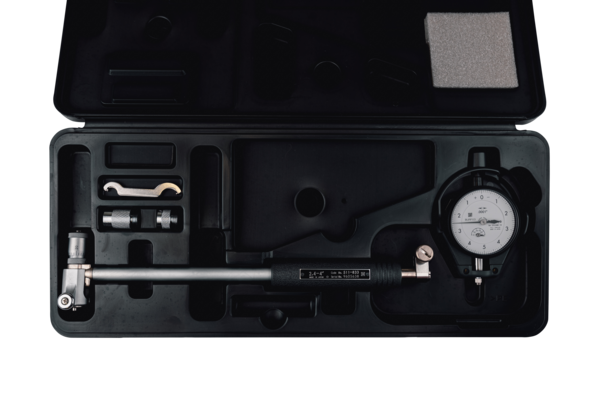

In a box with bore gauge 511-855, dial indicator 2922AB, plastic cover for indicator 21DZA000, 4 sub-anvils, 2 spanner 301336
Mass:
850 g

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
