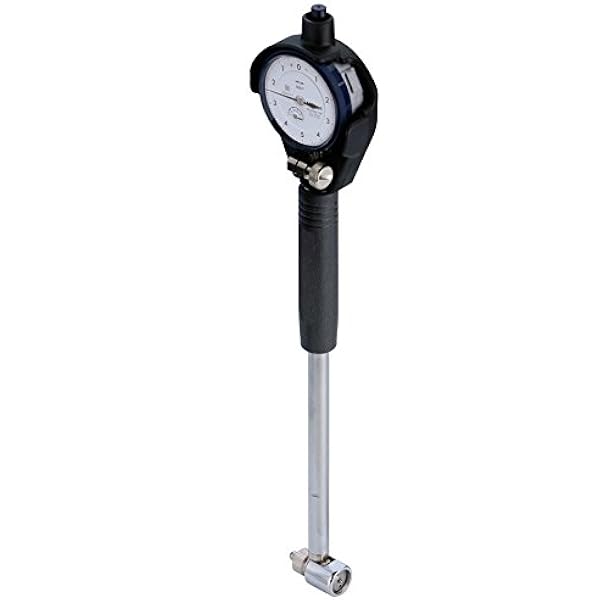

Mitutoyo 2-Point Inside Measuring Instrument Range 2.4-4" Graduation ..0005" Micrometer Head 511-843-20

Roll over image to zoom in Click on image to zoom

Mitutoyo 2-Point Inside Measuring Instrument Range 2.4-4" Graduation ..0005" Micrometer Head 511-843-20

Name: Mitutoyo 2-Point Inside Measuring Instrument Range 2.4-4" Graduation ..0005" Micrometer Head 511-843-20
Brand: Mitutoyo
SKU: 511-843-20
Price: 441.0 EUR
Availability: InStock

MitutoyoSKU: 511-843-20

Price:

€441.00 €586.75

Quantity:

This is a micrometer head that enables measurements without interchangeable anvils.
It offers you the following benefits:

A long plunger stroke gives you amazing accuracy.
Contact points are carbide (>18 mm range), giving you high durability and wear resistance.
A large grip reduces heat transfer from the operator by 50%.
Wide measuring range with sub-anvils.

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

Product Information
Part Number	511-843-20
Measuring Range	2.4-4"
Accuracy	["±.0001\""]
Graduation	.0001"
Accuracy	+/-.0001"
Unit of Measurement	Inch
Display Type	Analogue
Items Per Set	2
Repeatability	.00002"
Probing Depth	4"
Anvils	2pcs

Digital/Analog:	Analog
Inch-Metric:	Inch
Range:	2.4 - 4 "
Graduation:	0.0005"
Measuring depth:	4"
No. Dial Indicator:	2922AB
Micrometer Head stroke:	0.4"
Accuracy:	2 µm
Repeatability:	0,5 µm
Sub anvils:	0.4, 0.8"

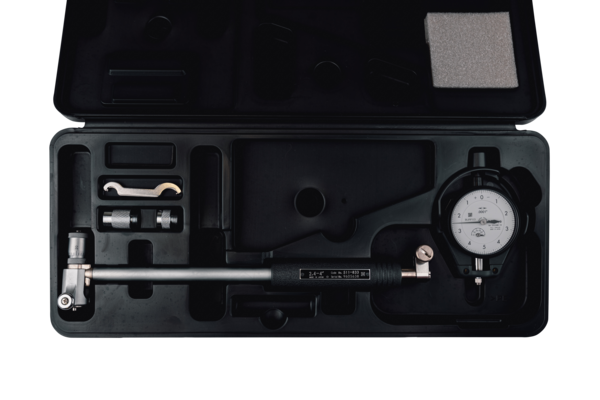

Delivered:	In a box with bore gauge 511-833, dial indicator 2922AB plastic cover for indicator 21DZA000, 2 sub-anvils, spanner 301336 (2 pcs.) / 202863
Mass:	430 g
