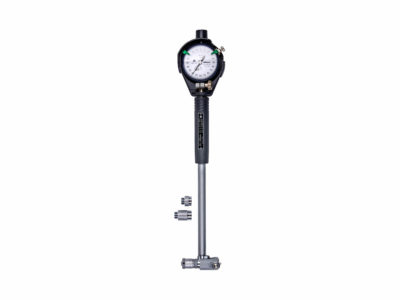

Mitutoyo 2-Point Inside Measuring Instrument Range 60-100mm Graduation .001mm , Micrometer Head 511-823-20

Roll over image to zoom in Click on image to zoom

Mitutoyo 2-Point Inside Measuring Instrument Range 60-100mm Graduation .001mm , Micrometer Head 511-823-20

Name: Mitutoyo 2-Point Inside Measuring Instrument Range 60-100mm Graduation .001mm , Micrometer Head 511-823-20
Brand: Mitutoyo
SKU: 511-823-20
Price: 504.0 EUR
Availability: InStock

MitutoyoSKU: 511-823-20

Price:

€504.00 €672.00

Quantity:

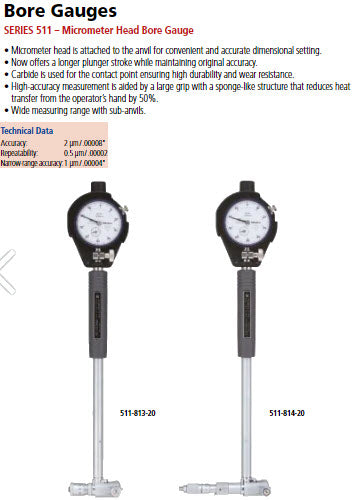

This is a micrometer head that enables measurements without interchangeable anvils.
It offers you the following benefits:

A long plunger stroke gives you amazing accuracy.

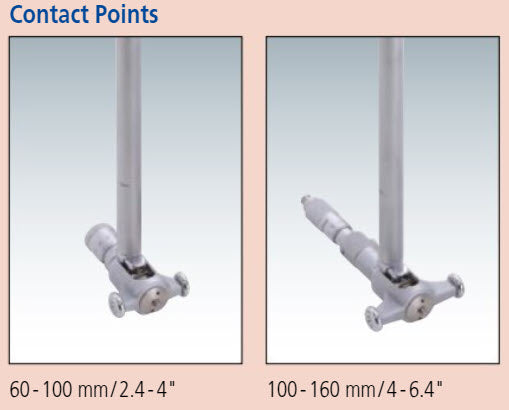

Contact points are carbide (>18 mm range), giving you high durability and wear resistance.
A large grip reduces heat transfer from the operator by 50%.
Wide measuring range with sub-anvils.

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

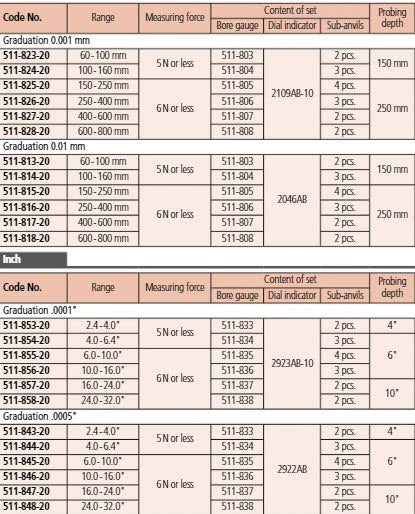

Product Information
Part Number	511-823-20
Measuring Range	60-100mm
Accuracy	["±.002mm"]
Graduation	.001mm
Accuracy	+/-.002mm
Unit of Measurement	Metric
Display Type	Analogue
Repeatability	.0005mm
Probing Depth	150mm
Anvils	2pcs

Digital/Analog:	Analog
Inch-Metric:	Metric
Range:	60 - 100 mm
Graduation:	0.001 mm
Measuring depth:	150 mm
No. Dial Indicator:	2109AB-10
Micrometer Head stroke:	10 mm
Accuracy:	2 µm
Repeatability:	0,5 µm
Sub anvils:	10, 20 mm

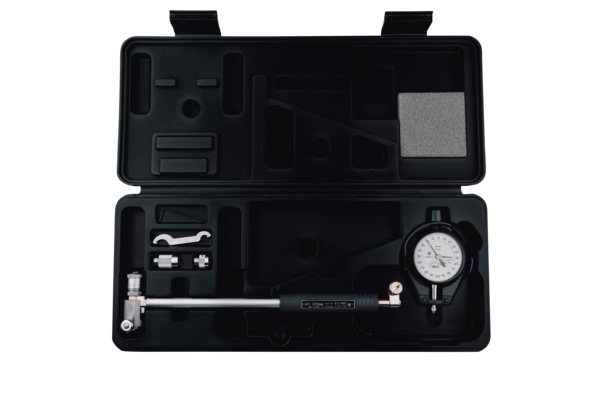

Delivered:	In a box with bore gauge 511-803, dial indicator 2109AB-10, plastic cover for indicator 21DZA000, 2 sub-anvils, spanner 301336 (2 pcs.) / 202863
Mass:	430 g
