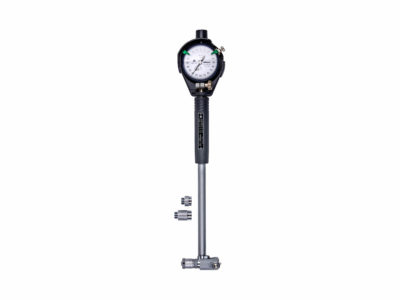

Mitutoyo 2-Point Inside Measuring Instrument Range 600-800mm Graduation .01mm , Micrometer Head 511-818-20

Roll over image to zoom in Click on image to zoom

Mitutoyo 2-Point Inside Measuring Instrument Range 600-800mm Graduation .01mm , Micrometer Head 511-818-20

Name: Mitutoyo 2-Point Inside Measuring Instrument Range 600-800mm Graduation .01mm , Micrometer Head 511-818-20
Brand: Mitutoyo
SKU: 511-818-20
Price: 1157.0 EUR
Availability: InStock

MitutoyoSKU: 511-818-20

Price:

€1,157.00 €1,542.00

Quantity:

This is a micrometer head that enables measurements without interchangeable anvils.
It offers you the following benefits:

A long plunger stroke gives you amazing accuracy.
Contact points are carbide (>18 mm range), giving you high durability and wear resistance.
A large grip reduces heat transfer from the operator by 50%.
Wide measuring range with sub-anvils.

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

Product Information
Part Number	511-818-20
Measuring Range	600-800mm
Accuracy	["±.002mm"]
Graduation	.01mm
Accuracy	+/-.002mm
Unit of Measurement	Metric
Display Type	Analogue
Repeatability	.0005mm
Probing Depth	250mm
Anvils	2pcs

Digital/Analog:	Analog
Inch-Metric:	Metric
Range:	600-800mm
Graduation:	0.01 mm
Measuring depth:	150 mm
No. Dial Indicator:	2046AB
Micrometer Head stroke:	10 mm
Accuracy:	2 µm
Repeatability:	0,5 µm
Sub anvils:	10, 20 mm

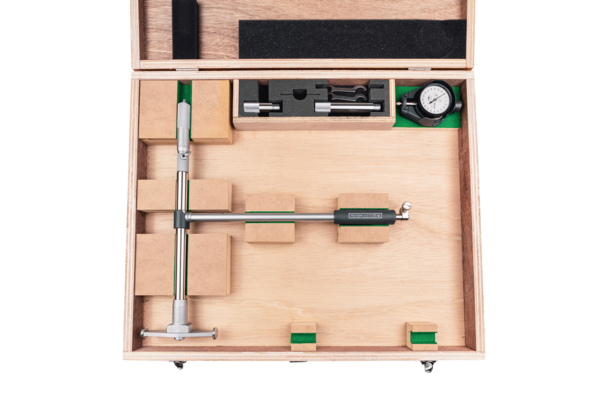

Delivered:	In a box with bore gauge 511-808, dial indicator 2046AB, plastic cover for indicator 21DZA000, 2 sub-anvils, spanner 301336 (2 pcs.) / 202863
Mass:	430 g
