2-Point Inside Measuring Instrument Range 10-16" Graduation .0005" 511-746-20

Roll over image to zoom in Click on image to zoom

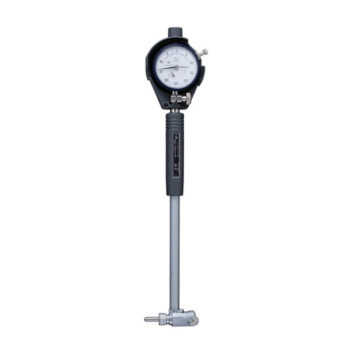

2-Point Inside Measuring Instrument Range 10-16" Graduation .0005" 511-746-20

Name: 2-Point Inside Measuring Instrument Range 10-16" Graduation .0005" 511-746-20
Brand: Mitutoyo
SKU: 511-746-20
Price: 633.0 EUR
Availability: InStock

MitutoyoSKU: 511-746-20

Price:

€633.00 €843.00

Quantity:

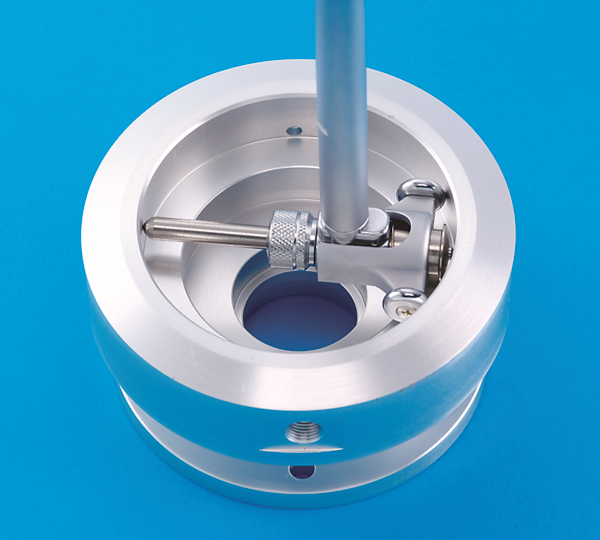

This is a short range application Bore Gauge Set that automatically self-centres via a centring bridge and offers you the following benefits:

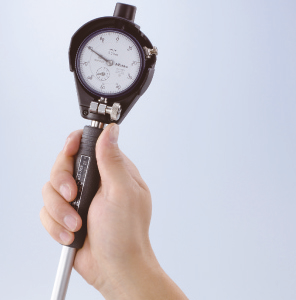

It reduces the influence of heat from the operator's hand by 50% by making the grip hollow structured, thereby retaining high accuracy measurement.
Interchangeable washers (0,5 mm thick) are supplied as standard accessories, so you can enable setting in small steps.
Contact points are carbide (>18 mm range), giving you high durability and wear resistance.

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

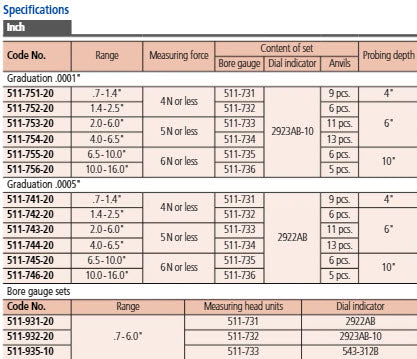

Product Information
Part Number	511-746-20
Measuring Range	10-16"
Accuracy	["±.0001\""]
Graduation	.0005"
Accuracy	+/-.0001"
Unit of Measurement	Inch
Display Type	Analogue
Measuring Force	≤4N
Repeatability	.00002"
Probing Depth	10"
Anvils	5pcs

Inch-Metric:	Inch
Range:	10 - 16 "
Graduation:	0.0005"
Stroke of contact point:	18 - 60 mm: 1.2 mm 50 - 400 mm: 1.6 mm
Measuring depth:	10"
No. Dial Indicator:	2922AB
Number of anvils:	5
Accuracy:	2 µm
Repeatability:	0.5 µm
Digital/Analog:	Analog

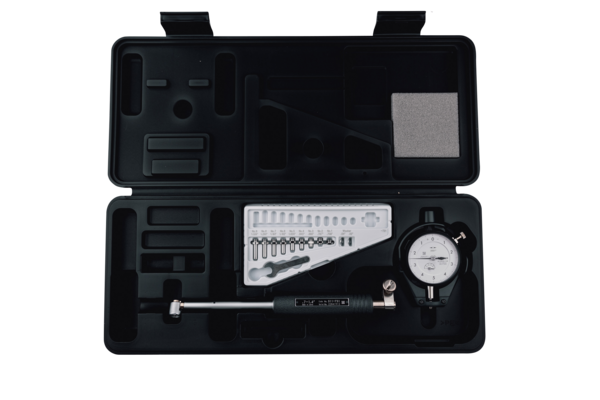

Delivered:	In a box with bore gauge 511-736, dial indicator 2922AB, plastic cover for indicator 21DZA000, 5 anvils, 7 interchangeable washer, 1 sub-anvil
Mass:	945 g
