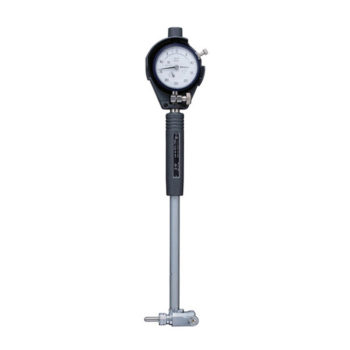

2-Point Inside Measuring Instrument Range 4-6.5" Graduation .0005" 511-744-20

Roll over image to zoom in Click on image to zoom

2-Point Inside Measuring Instrument Range 4-6.5" Graduation .0005" 511-744-20

Name: 2-Point Inside Measuring Instrument Range 4-6.5" Graduation .0005" 511-744-20
Brand: Mitutoyo
SKU: 511-744-20
Price: 425.23 EUR
Availability: InStock

MitutoyoSKU: 511-744-20

Price:

€425.23 €582.50

Quantity:

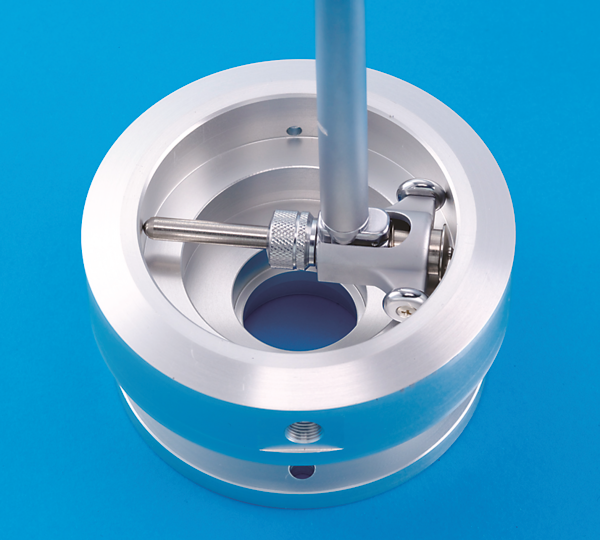

This is a short range application Bore Gauge Set that automatically self-centres via a centring bridge and offers you the following benefits:

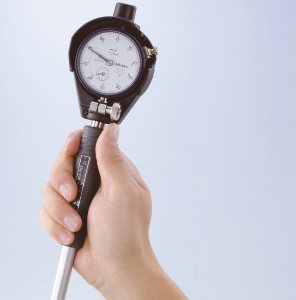

It reduces the influence of heat from the operator's hand by 50% by making the grip hollow structured, thereby retaining high accuracy measurement.
Interchangeable washers (0,5 mm thick) are supplied as standard accessories, so you can enable setting in small steps.
Contact points are carbide (>18 mm range), giving you high durability and wear resistance.

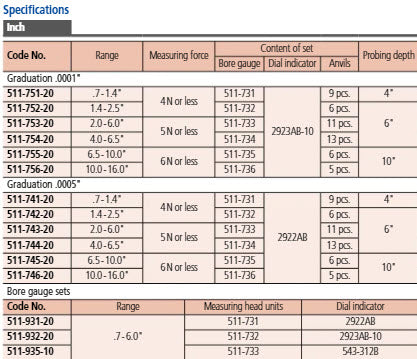

Product Information
Part Number	511-744-20
Measuring Range	4-6.500"
Accuracy	["±.0001\""]
Graduation	.0005"
Accuracy	+/-.0001"
Unit of Measurement	Inch
Display Type	Analogue
Items Per Set	13
Measuring Force	≤4N
Repeatability	.00002"
Probing Depth	6"
Anvils	11pcs

Inch-Metric:	Inch
Range:	4 - 6.5 "
Graduation:	0.0005"
Stroke of contact point:	18 - 60 mm: 1.2 mm 50 - 400 mm: 1.6 mm
Measuring depth:	6"
No. Dial Indicator:	2922AB
Number of anvils:	13
Accuracy:	2 µm
Repeatability:	0.5 µm
Digital/Analog:	Analog

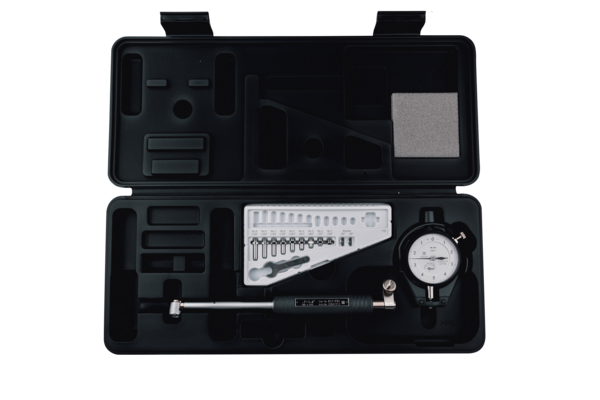

Delivered:	In a box with bore gauge 511-734, dial indicator 2922AB plastic cover for indicator 21DZA000, 13 anvils, 4 interchangeable washer
Mass:	480 g
