2-Point Inside Measuring Instrument Range 35-60mm, Graduation .001mm 511-722-20

Roll over image to zoom in Click on image to zoom

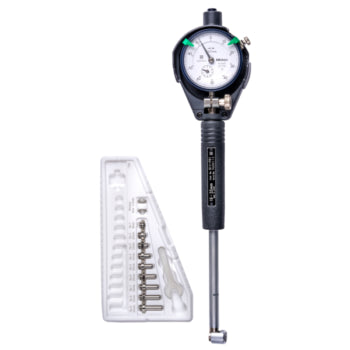

2-Point Inside Measuring Instrument Range 35-60mm, Graduation .001mm 511-722-20

Name: 2-Point Inside Measuring Instrument Range 35-60mm, Graduation .001mm 511-722-20
Brand: Mitutoyo
SKU: 511-722-20
Price: 315.0 EUR
Availability: InStock

MitutoyoSKU: 511-722-20

Price:

€315.00 €419.28

Quantity:

This is a short range application Bore Gauge Set that automatically self-centres via a centring bridge and offers you the following benefits:

It reduces the influence of heat from the operator's hand by 50% by making the grip hollow structured, thereby retaining high accuracy measurement.
Interchangeable washers (0,5 mm thick) are supplied as standard accessories, so you can enable setting in small steps.
Contact points are carbide (>18 mm range), giving you high durability and wear resistance.

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

Product Information
Part Number	511-722-20
Measuring Range	35-60mm
Accuracy	["±.002mm"]
Graduation	.001mm
Accuracy	+/-.002mm
Unit of Measurement	Metric
Display Type	Analogue
Items Per Set	6
Measuring Force	≤4N
Repeatability	.0005mm
Probing Depth	150mm
Anvils	6pcs

Inch-Metric:	Metric
Range:	35-60mm
Graduation:	0.001 mm
Stroke of contact point:	1.2 mm
Measuring depth:	150 mm
No. Dial Indicator:	2109AB-10
Number of anvils:	6
Accuracy:	2 µm
Repeatability:	0.5 µm
Digital/Analog:	Analog

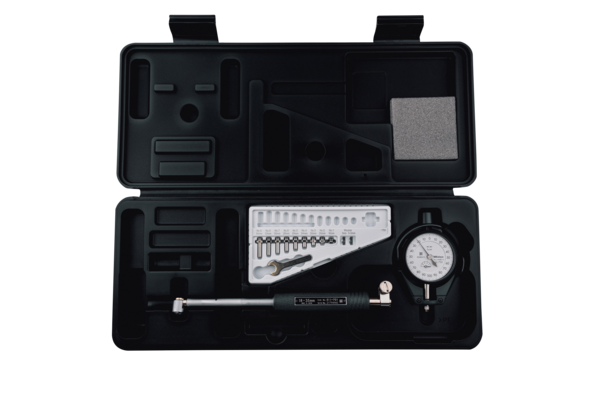

Delivered:	In a box with bore gauge 511-702, dial indicator 2109AB-10, plastic cover for indicator 21DZA000, 6 anvils, 2 interchangeable washer, spanner 1202148
Mass:	330 g
