2-Point Inside Measuring Instrument Range 18-35mm, Graduation 0,001mm 511-721-20

Mitutoyo SKU: 511-721-20
List price: €426.00 Offer price: €330.00 Excluding VAT
Why Choose Inspection Equipment
Fast Dispatch Orders dispatched quickly from our extensive warehouse stock.
46 Years of Experience Established in 1980 with decades of metrology expertise.
Technical Support Experienced specialists available before and after your purchase.
25,000+ Products One of Ireland’s largest ranges of precision measurement equipment.
Expert Advice We will help you select the right instrument for your application.
Need help choosing the right product?
This is a short range application Bore Gauge Set that automatically self-centres via a centring bridge and offers you the following benefits:
  • It reduces the influence of heat from the operator's hand by 50% by making the grip hollow structured, thereby retaining high accuracy measurement.
  • Interchangeable washers (0,5 mm thick) are supplied as standard accessories, so you can enable setting in small steps.
  • Contact points are carbide (>18 mm range), giving you high durability and wear resistance.
Features
Inch-Metric:
Metric
Range:
18 - 35 mm
Graduation:
0.001 mm
Stroke of contact point:
1.2 mm
Measuring depth:
100 mm
No. Dial Indicator:
2109AB-10
Number of anvils:
9
Accuracy:
2 µm
Repeatability:
0.5 µm
Digital/Analog:
Analog
Delivered:

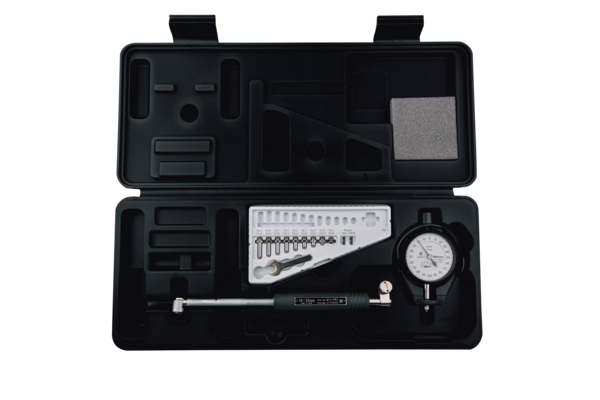

In a box with bore gauge 511-701, dial indicator 2109AB-10, plastic cover for indicator 21DZA000, 9 anvils, 2 interchangeable washer, spanner 1202148
Mass:
330 g

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
