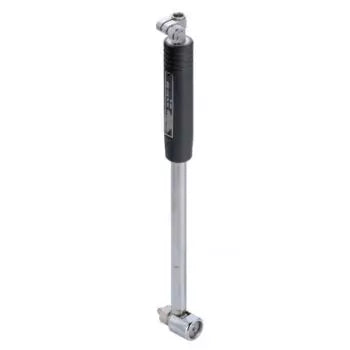

511-702 Mitutoyo Standard Type Dial Bore Gage: 35-60mm (Without Dial Gage)
The Mitutoyo 511-702 dial bore gage standard type has the following specifications:
- Range: 35-60mm
- Graduations: No Indicator Included
- 6 Anvils
- 4 Spacers
Features:
- Available in Inch or metric models
- Optional extension rods are available to measuring deep hole with accuracy
- Large, newly designed grips are easier to hold and reduce heat transfer from the operator for better accuracy
- Fully protected by a rugged cover (except models that do not include an indicator)
- Gage stem diameter is 8mm
- Interchangeable anvils are constructed of alloy steel with carbide-tipped measuring faces for added accuracy and durability
- Supplied in a fitted plastic case
Technical Data:
- Technology: Mechanical
- Contact Point: Carbide Tipped
- Units: Metric
- Stem Diameter: 8mm
- With Dial Gage Protective Cover (21DZA000): No
The Mitutoyo 511-702 standard type bore gage set features interchangeable anvils and spacers to take highly accurate diameter measurements of a wide range of bore hole sizes. Models are available with a Mitutoyo Dial Indicator. The Mitutoyo standard type bore gage is available in several different inch ranges to measure inside bore diameters with accuracy to +/- 2µm. The bore gage comes with interchangeable anvils to measure different bore diameters with the same gage. A pendulum guide structure permits the slide of the gage for measurements while a two-point contact system detects geometry anomalies such as roundness and taper. Mitutoyo offers a complete selection of Bore Gages. The 511 series bore gages come standard with interchangeable anvils and necessary accessories to perform close tolerance ID measurements.
Mitutoyo 511 Series Standard Type Dial Bore Gages (Metric):
