2-Point Inside Measuring Instrument Range 1.4-2.4", Graduation .0001" For Blind holes 511-439-20

Mitutoyo SKU: 511-439-20
List price: €713.00 Offer price: €553.00 Excluding VAT
This is a bore gauge for measuring blind holes that offers you the following benefits:
    This is a bore gauge for measuring blind holes that offers you the following benefits:
    • You can measure the inside diameter close to the bottom of blind holes.

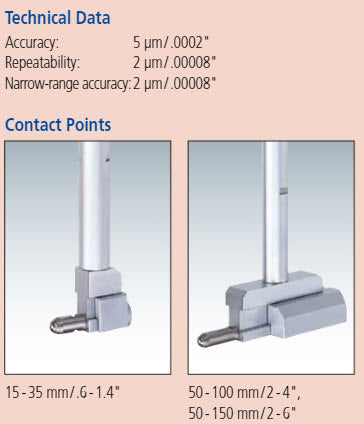

    • Contact points are carbide giving you high durability and wear resistance.
    Features
    Inch-Metric:
    Inch
    Digital/Analog:
    Analog
    Range:
    1.4 "-2.4"
    Graduation:
    0.0001"
    Stroke of contact point:
    1.2 mm
    Measuring depth:
    6"
    No. Dial Indicator:
    2923AB-10
    Accuracy:
    4 µm
    Repeatability:
    1 µm
    Delivered:

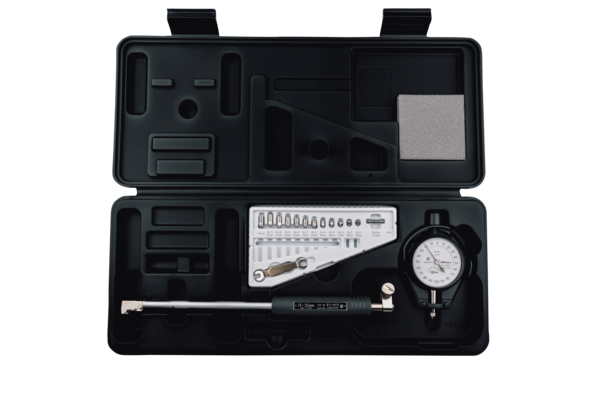

    In a box with bore gauge 511-418, dial indicator 2923AB-10, plastic cover for indicator 21DZA000, 6 anvils, 1 interchangeable washer
    Mass:
    350 g
