Mitutoyo SKU: 511-436-20
List price: €713.00 Offer price: €553.00 Excluding VAT
Why Choose Inspection Equipment
Fast Dispatch Orders dispatched quickly from our extensive warehouse stock.
46 Years of Experience Established in 1980 with decades of metrology expertise.
Technical Support Experienced specialists available before and after your purchase.
25,000+ Products One of Ireland’s largest ranges of precision measurement equipment.
Expert Advice We will help you select the right instrument for your application.
Need help choosing the right product?

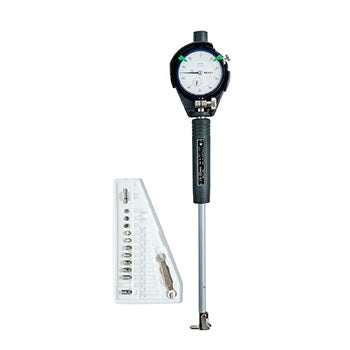

This is a bore gauge for measuring blind holes that offers you the following benefits:
  • You can measure the inside diameter close to the bottom of blind holes.
  • Contact points are carbide giving you high durability and wear resistance.
Features
Inch-Metric:
Metric
Digital/Analog:
Analog
Range:
50-150mm
Graduation:
0.001 mm
Stroke of contact point:
1.2 mm
Measuring depth:
150 mm
No. Dial Indicator:
2109AB
Accuracy:
4 µm
Repeatability:
1 µm
Delivered:

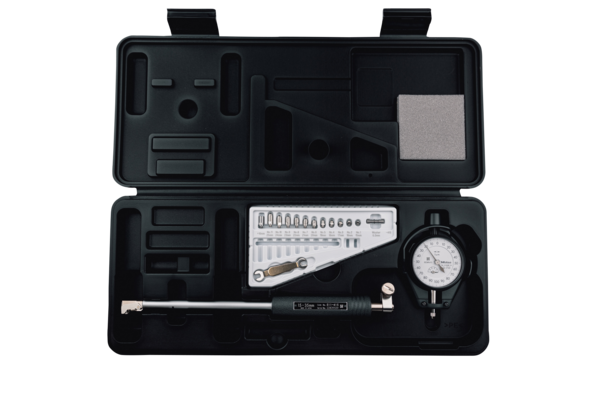

In a box with bore gauge 511-415, dial indicator 2109AB-10, plastic cover for indicator 21DZA000, 11 anvils, 1 interchangeable washer
Mass:
350 g
