Mitutoyo SKU: 511-435-20
List price: €696.00 Offer price: €540.00 Excluding VAT

Optional Services

Add your Gauge ID, asset/serial number, company name, logo or QR code.
This is a bore gauge for measuring blind holes that offers you the following benefits:
  • You can measure the inside diameter close to the bottom of blind holes.

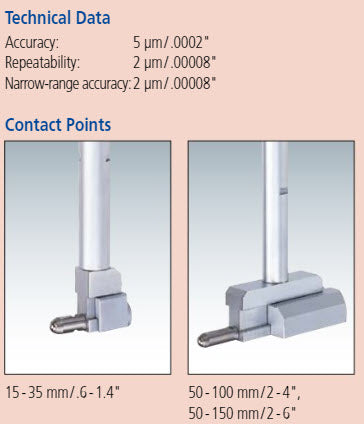

  • Contact points are carbide giving you high durability and wear resistance.
Features
Inch-Metric:
Metric
Digital/Analog:
Analog
Range:
15 - 35 mm
Graduation:
0.001 mm
Stroke of contact point:
1.2 mm
Measuring depth:
150 mm
No. Dial Indicator:
2109AB
Accuracy:
4 µm
Repeatability:
1 µm
Delivered:

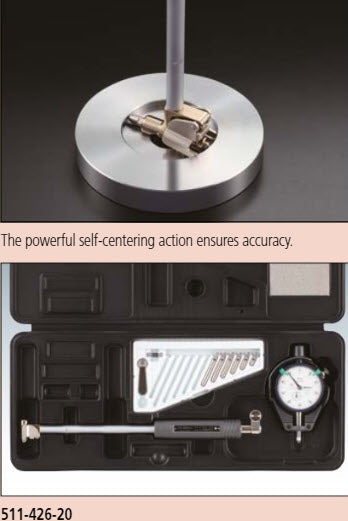

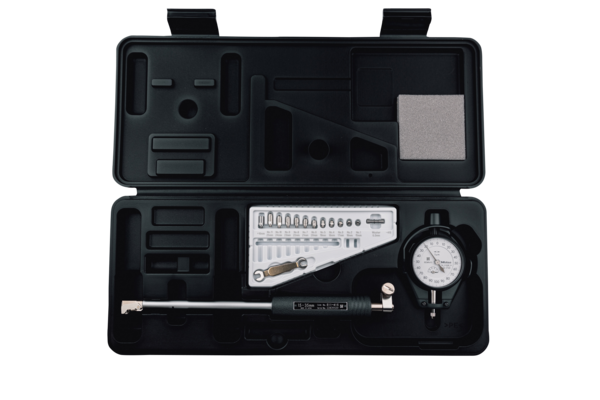

In a box with bore gauge 511-415, dial indicator 2109AB-10, plastic cover for indicator 21DZA000, 11 anvils, 1 interchangeable washer
Mass:
350 g

No technical information is currently available.

No application information is currently available.
