2-Point Inside Measuring Instrument 30-60mm Blind bores Graduation .01mm 511-426-20

Roll over image to zoom in Click on image to zoom

2-Point Inside Measuring Instrument 30-60mm Blind bores Graduation .01mm 511-426-20

Name: 2-Point Inside Measuring Instrument 30-60mm Blind bores Graduation .01mm 511-426-20
Brand: Mitutoyo
SKU: 511-436-20
Price: 531.08 EUR
Availability: InStock

MitutoyoSKU: 511-436-20

Price:

€531.08 €727.50

Quantity:

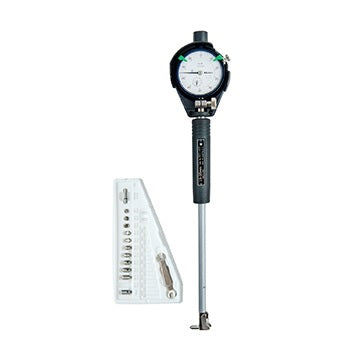

This is a bore gauge for measuring blind holes that offers you the following benefits:

You can measure the inside diameter close to the bottom of blind holes.

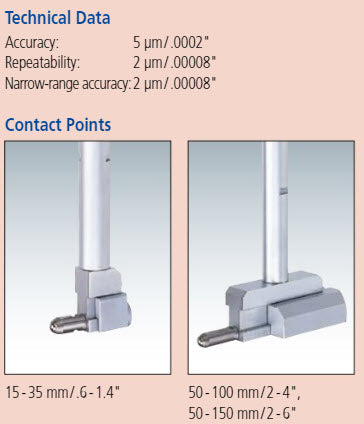

Contact points are carbide giving you high durability and wear resistance.

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

Product Information

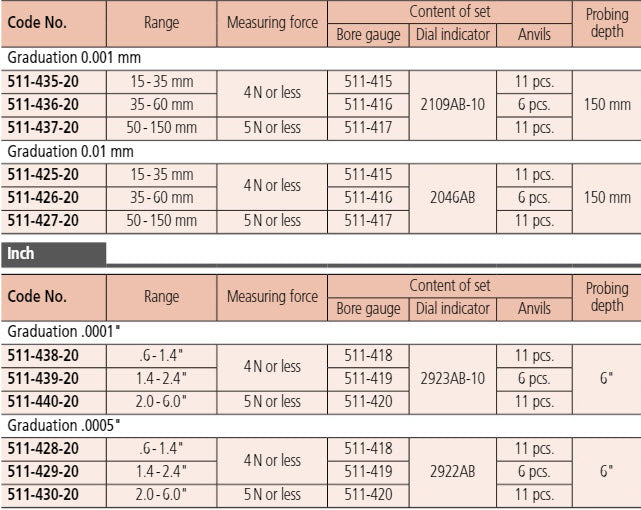

Part Number	511-436-20
Measuring Range	35-60mm
Accuracy	["±5µm/.0002\""]
Graduation	.01mm
Accuracy	+/-.005mm/.0002"
Unit of Measurement	Metric
Display Type	Analogue
Measuring Force	≤4N
Repeatability	2µm/.00008"
Probing Depth	150mm
Anvils	6pcs

Inch-Metric:	Metric
Digital/Analog:	Analog
Range:	35-60mm
Graduation:	0.01 mm
Stroke of contact point:	1.2 mm
Measuring depth:	150 mm
No. Dial Indicator:	2046AB
Accuracy:	4 µm
Repeatability:	1 µm

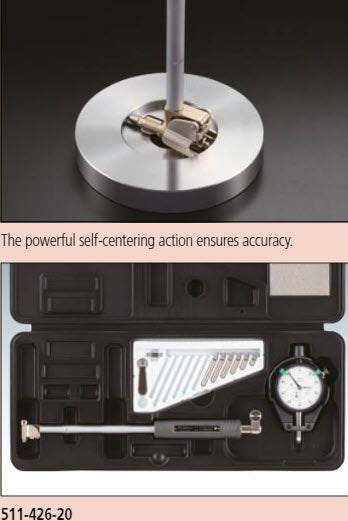

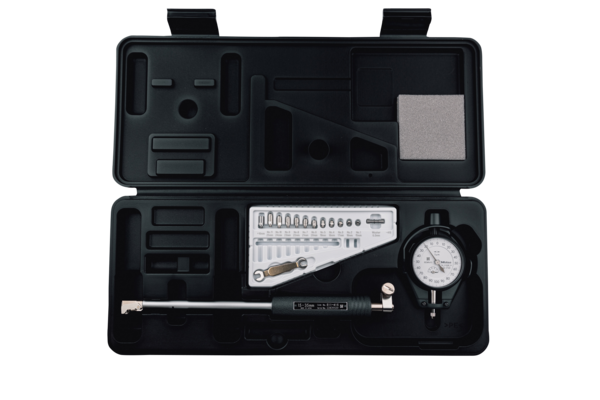

Delivered:	In a box with bore gauge 511-415, dial indicator 2046AB-10, plastic cover for indicator 21DZA000, 6 anvils, 1 interchangeable washer
Mass:	350 g
