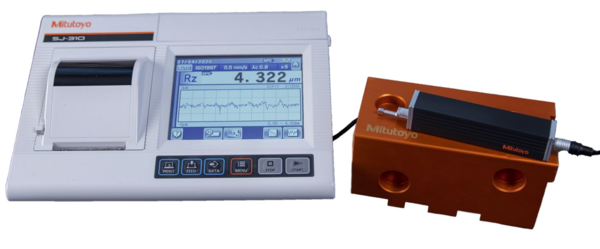

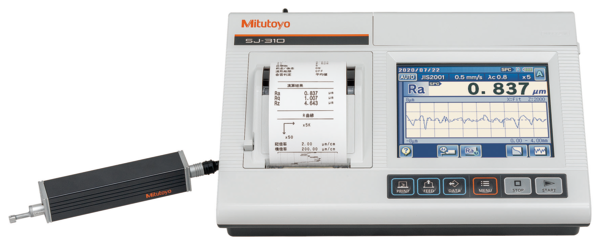

Surftest SJ-310R [inch/mm] "R5µm; 4mN; Retract-Drive" Item number: 178-573-12E
Surftest SJ-310R [inch/mm] "R5µm; 4mN; Retract-Drive" Item number: 178-573-12E
Surftest SJ-310R [inch/mm] "R5µm; 4mN; Retract-Drive" Item number: 178-573-12E
Surftest SJ-310R [inch/mm] "R5µm; 4mN; Retract-Drive" Item number: 178-573-12E
Surftest SJ-310R [inch/mm] "R5µm; 4mN; Retract-Drive" Item number: 178-573-12E
Surftest SJ-310R [inch/mm] "R5µm; 4mN; Retract-Drive" Item number: 178-573-12E
Roll over image to zoom in Click on image to zoom
Surftest SJ-310R [inch/mm] "R5µm; 4mN; Retract-Drive" Item number: 178-573-12ESurftest SJ-310R [inch/mm] "R5µm; 4mN; Retract-Drive" Item number: 178-573-12ESurftest SJ-310R [inch/mm] "R5µm; 4mN; Retract-Drive" Item number: 178-573-12ESurftest SJ-310R [inch/mm] "R5µm; 4mN; Retract-Drive" Item number: 178-573-12ESurftest SJ-310R [inch/mm] "R5µm; 4mN; Retract-Drive" Item number: 178-573-12ESurftest SJ-310R [inch/mm] "R5µm; 4mN; Retract-Drive" Item number: 178-573-12E

Surftest SJ-310R [inch/mm] "R5µm; 4mN; Retract-Drive" Item number: 178-573-12E

Mitutoyo SKU: 178-573-12E
Price: €3,670.00 Excluding VAT
Inch/Metric
Cable length:
1 m
Detector measuring force:
0.75 mN
Stylus tip angle:
60°
Stylus tip radius:
2 µm
Measuring method:
Induction method
Stylus:
Diamond Tip
Skid radius:
40 mm
Measuring force:
0.75 mN
Interface:
RS-232 C interface for input/output,DIGIMATIC output,Compact flash card
Profiles:
Primary Profile (P), Roughness Profile (R), DIN 4,776, MOTIF
Display range:

Ra, Rq: 0.01 µm - 100 µm
Ry, Rz, Rt, Rv, R3z, Rk, Rpk, Rvk, R,
Rp, Rx, AR, W,
Wx, Wte: 0.02 µm - 350 µm
S, Sm: 2 µm - 4,000 µm
HSC, Pc: 2.5/cm - 5,000/cm;
Ppi: 6.35 - 12,700/inch
dc: - 350 µm - + 350 µm
Lo: 0.1 mm - 99,999 mm
mr, Mr 1, Mr 2: 0 - 100 %
A1, A2: 0 - 15,000
Roughness standard:
DIN, ISO, ANSI, JIS
Sampling length (L):
0.08 mm, 0.25 mm, 0.8 mm, 2.5 mm, 8 mm or input
No. of sampling length (L):
x 1, x 3, x 5, x L
Digital filter:
2RC-75%, 2RC-75% (phase corrected), Gauss -50%
Cut-off length:
lc: 0.08 mm, 0.25 mm, 0.8 mm, 2.5 mm, 8 mm, ls: 2.5 µm, 8 µm, 25 µm
Printer:
Thermal Printer (Printing width: 48 mm)
Statistics:
Max/Min,Average value, Standard deviation (s), Pass Ratio, Frequency Distribution Table
Auto-sleep:
Automatic after 5 minutes
Tolerance:
Upper/lower limit values for three parameters
