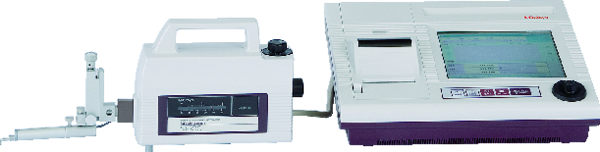

Surftest SJ-500 [inch/mm] R2µm; 0,75mN 178-533-11
Surftest SJ-500 [inch/mm] R2µm; 0,75mN 178-533-11
Surftest SJ-500 [inch/mm] R2µm; 0,75mN 178-533-11
Roll over image to zoom in Click on image to zoom
Surftest SJ-500 [inch/mm] R2µm; 0,75mN 178-533-11Surftest SJ-500 [inch/mm] R2µm; 0,75mN 178-533-11Surftest SJ-500 [inch/mm] R2µm; 0,75mN 178-533-11

Surftest SJ-500 [inch/mm] R2µm; 0,75mN 178-533-11

Mitutoyo SKU: 178-533-11
Price: €14,915.66 Excluding VAT
The Surftest SJ-500 offers you the following benefits:
  • The skidless detector allows you to measure the primary profile (P), roughness profile (R),
    waviness profile (W) and more.
  • User friendly control unit for high precision surface roughness measurement.

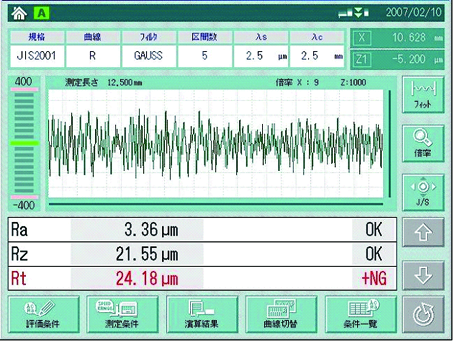

  • The large 19 cm [7.5”] colour TFT LCD with touch-screen functionality gives you high visibility and ease of use.
  • The display menu is easy to read and simple to operate.
  • It performs roughness analyses conform to various international standards (EN ISO, VDA, ANSI, JIS) and customized settings.
  • The built-in joystick on the control unit enables quick and easy positioning. The manual
    adjustment knob allows you to finely position a small stylus to measure the inside surface of small holes.
  • The detector unit allows a 90° displacement of the stylus, which is ideal for crankshaft and
    narrow space measurement.
  • You can use the instrument stand-alone or mounted on a stand.
Features
Traverse:
50 mm
Measuring speed:
0.02 - 5 mm/s
Drive speed:
0 - 20 mm/s
or joystick operation
Traverse straightness:
0,2 µm / 50 mm
Range:
800 µm; 80 µm; 8 µm
(up to 2,4 mm with an optional stylus)
Detector measuring force:
0.75 mN
Positioning:
±1.5° (tilting) 30 mm (up/down)
Measuring method:
Skidless - Differential inductance
Stylus tip angle:
60°
Stylus tip radius:
2 µm
Profiles:
Primary Profile (P), Roughness Profile (R), Waviness (W),
MOTIF (R, W) and more
Standard:
EN ISO, VDA, JIS, ANSI and customize setting

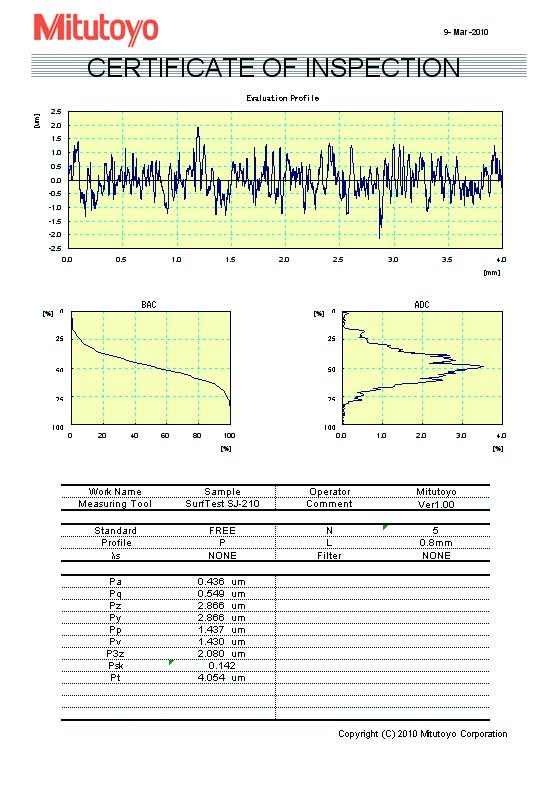

Analysis graphs:
BAC, ADC
Digital filter:
Gauss, 2CR75, PC75, RobustSpline
Cut-off length:
λc : 0.025 mm; 0.08 mm; 0.25 mm; 0.8 mm; 2.5 mm; 8 mm; 25 mm
λs : 0.25 µm; 0.8 µm; 2.5 µm; 8 µm; 25 µm; 80 µm; 250 µm; None
λf : 0.08 mm; 0.25 mm; 0.8 mm; 2.5 mm; 8mm; 25mm; None
Printer:
Thermal printer
