Surftest SJ-500 [mm] R2µm; 0,75mN 178-532-01D

Roll over image to zoom in Click on image to zoom

Surftest SJ-500 [mm] R2µm; 0,75mN 178-532-01D

Name: Surftest SJ-500 [mm] R2µm; 0,75mN 178-532-01D
Brand: Mitutoyo
SKU: 178-532-01D
Price: 12380.0 EUR
Availability: InStock

MitutoyoSKU: 178-532-01D

Price:

€12,380.00

Quantity:

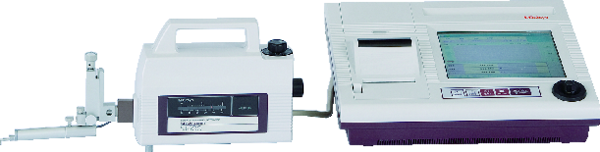

DescriptionThis is a measuring instrument that allows you to easily and accurately measure surface roughness.

The Surftest SJ-500 offers you the following benefits:

The skidless detector allows you to measure the primary profile (P), roughness profile (R),
waviness profile (W) and more.
User friendly control unit for high precision surface roughness measurement.

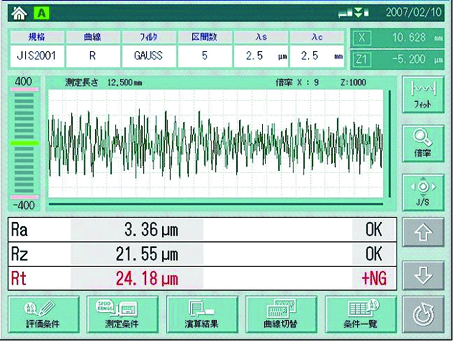

The large 19 cm [7.5”] colour TFT LCD with touch-screen functionality gives you high visibility and ease of use.
The display menu is easy to read and simple to operate.
It performs roughness analyses conform to various international standards (EN ISO, VDA, ANSI, JIS) and customized settings.
The built-in joystick on the control unit enables quick and easy positioning. The manual
adjustment knob allows you to finely position a small stylus to measure the inside surface of small holes.
The detector unit allows a 90° displacement of the stylus, which is ideal for crankshaft and
narrow space measurement.
You can use the instrument stand-alone or mounted on a stand.

Features

Traverse:	50 mm
Measuring speed:	0.02 - 5 mm/s
Drive speed:	0 - 20 mm/s or joystick operation
Traverse straightness:	0,2 µm / 50 mm
Range:	800 µm; 80 µm; 8 µm (up to 2,4 mm with an optional stylus)
Detector measuring force:	0.75 mN
Positioning:	±1.5° (tilting) 30 mm (up/down)
Measuring method:	Skidless - Differential inductance
Stylus tip angle:	60°
Stylus tip radius:	2 µm
Profiles:	Primary Profile (P), Roughness Profile (R), Waviness (W), MOTIF (R, W) and more
Standard:	EN ISO, VDA, JIS, ANSI and customize setting

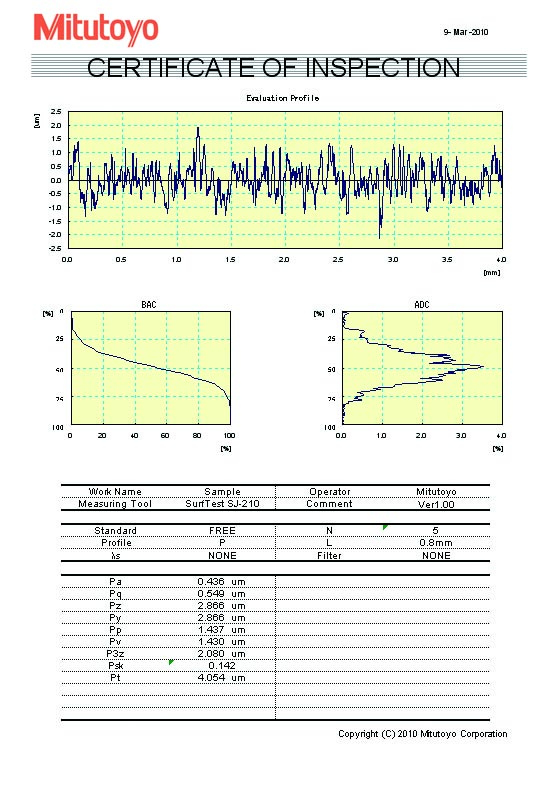

Analysis graphs:	BAC, ADC
Digital filter:	Gauss, 2CR75, PC75, RobustSpline
Cut-off length:	λc : 0.025 mm; 0.08 mm; 0.25 mm; 0.8 mm; 2.5 mm; 8 mm; 25 mm λs : 0.25 µm; 0.8 µm; 2.5 µm; 8 µm; 25 µm; 80 µm; 250 µm; None λf : 0.08 mm; 0.25 mm; 0.8 mm; 2.5 mm; 8mm; 25mm; None
Printer:	Thermal printer
