Mitutoyo Surface Roughness Small Hole Detector - Low Force
The Standard Detector for the Mitutoyo Surface Roughness Tester models SJ-210 & SJ-310 has a measuring tip that is about 6mm overall height.

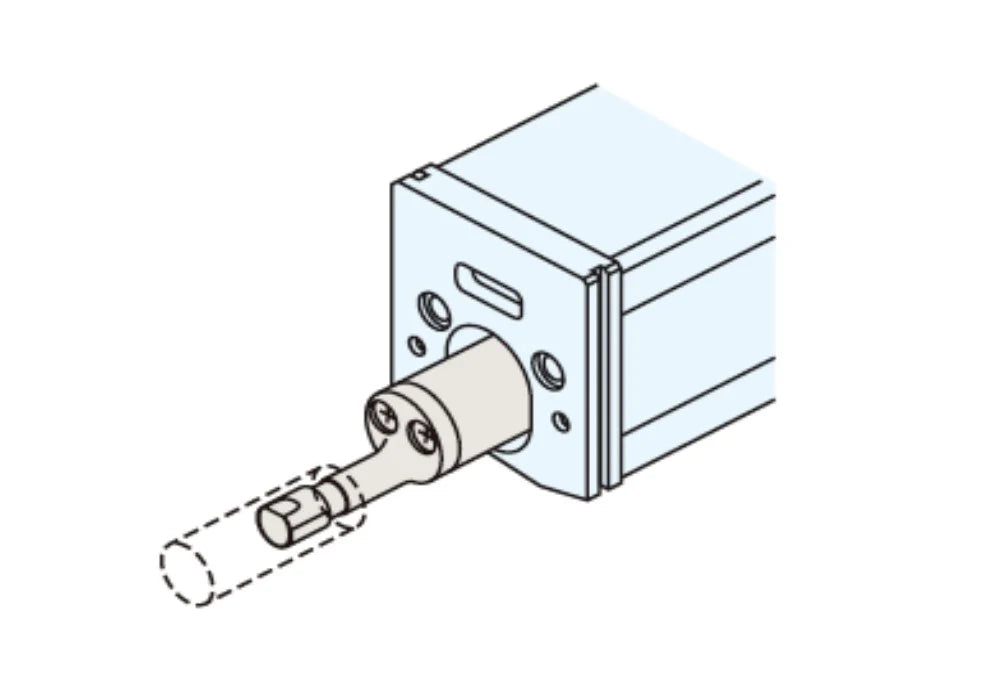

To be able to measure the surface roughness of a small hole that has a minimum diameter of 4.5mm, Mitutoyo recommends using the Small Hole Detector for the Mitutoyo Surtest models SJ-210 & SJ-310.
The Mitutoyo Surface Roughness Tester models SJ-210 & SJ-310 are both available in 2 different models, the Standard Force model and the Low Force model.
- The Standard Force model uses 4 mN measuring force during the measurement.
- The Low Force model uses 0.75 mN measuring force during the measurement.

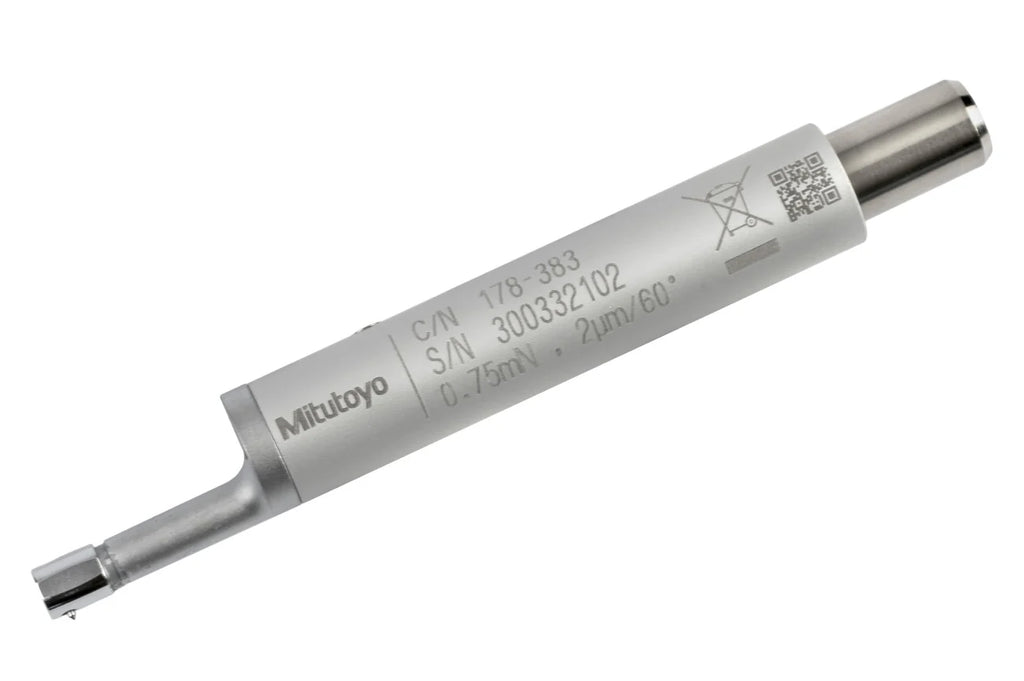

This Small Hole Detector is designed to be used with the Low Force models of the SJ-210 & SJ310.
Features include...
- Small Hole Detector for Mitutoyo Surftest Models...
- 0.75mN Measuring Force
- Stylus Profile: 2umR Tip Radius
- 60° Tip Angle
