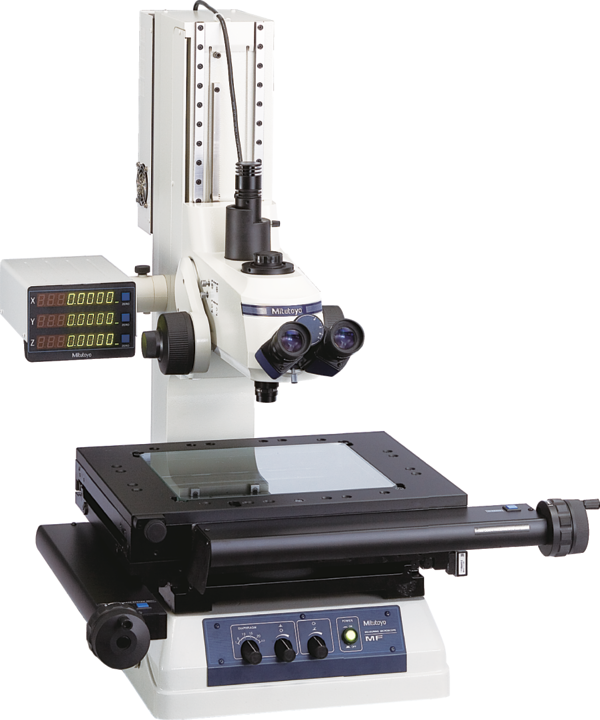

MF-A2017D Standard microscope with XY counter 176-963-13

MF-A2017D Standard microscope with XY counter 176-963-13

Mitutoyo SKU: 176-963-13
Price: €16,265.06 Excluding VAT
Why Choose Inspection Equipment
Fast Dispatch Orders dispatched quickly from our extensive warehouse stock.
46 Years of Experience Established in 1980 with decades of metrology expertise.
Technical Support Experienced specialists available before and after your purchase.
25,000+ Products One of Ireland’s largest ranges of precision measurement equipment.
Expert Advice We will help you select the right instrument for your application.
Need help choosing the right product?

MF Generation D: Manual models
This versatile measuring microscope, whether you use it to boost the performance with Mitutoyo‘s vision unit, for data management on a PC or other applications, offers you further improved measuring efficiency.

The MF offers you the following benefits:

  • Measuring accuracy that is one of the highest in its class.
  • Proven high-NA objectives from the ML optical series (long working distance type).
  • Integration of metallurgical and measurement microscope functions enabling you to make high-resolution observations and high-accuracy measurements.
  • Illumination unit (reflected/transmitted) gives you the option of a high-intensity LED or halogen bulb.
  • The variable aperture diaphragm (reflected/ transmitted) allows observation measurement while suppressing light diffraction.
  • Variety of standardized stages in sizes up to 400 × 200 mm.
  • Quick-release mechanism enabling you to move the stage quickly when measuring large or numerous workpieces.
  • High-magnification eyepiece observation up to 2000X.
  • A good choice of optional accessories, including a Vision Unit, various digital cameras or data management on a PC, promises a wide field of application and excellent measuring
Features
Observation image:
Erect
MF-A (2 axis) No.:
176-963-10
MF-B (3 axis) No.:
176-968-10
Indication accuracy (at 20°C):
XY-axis: (2,2+0,02L) µm
Z-axis: (5+0,04L) µm
L: Measuring length (mm)
when not loaded,
JIS B 7153
Floating function:
X and Y axes with Quick-release mechanism
XY stage top size:
410 x 342 mm
Effective glass size:
270 x 240 mm
Objective lens:
Standard: 3X
Optional: 1X, 5X, 10X, 20X, 50X, 100X
Max. workpiece height:
220 mm
Mass:
130 kg
Camera Port:
Yes
Power Turret:
No
Zero-setting:
Yes
FS Objective:
No
Z-axis motor:
No
Remote:
No
Counter:
Yes
Quick Release:
Yes
Tilting:
No
Vision AF:
No
