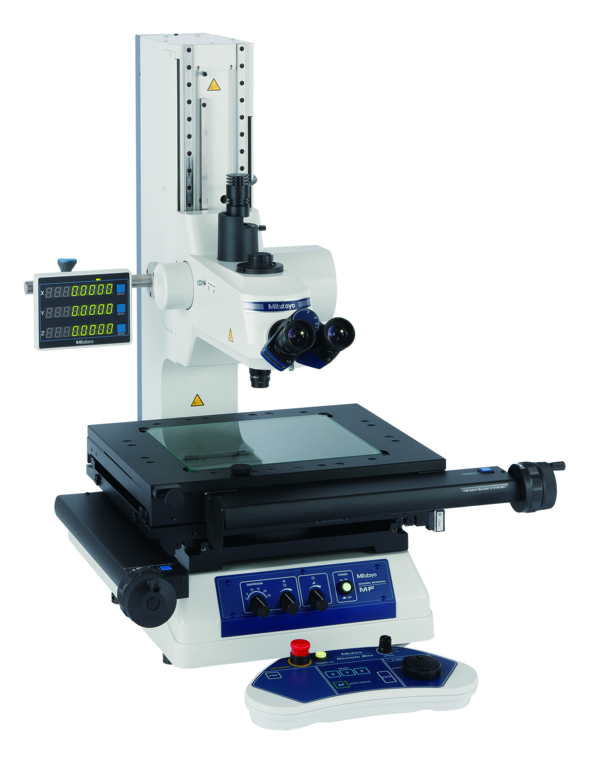

MF-UJ4020D BF microscope with motor-driven Z-axis 176-896D
Roll over image to zoom in Click on image to zoom
MF-UJ4020D BF microscope with motor-driven Z-axis 176-896D

MF-UJ4020D BF microscope with motor-driven Z-axis 176-896D

Mitutoyo SKU: 176-896D
Price: €37,210.00 Excluding VAT

Motor-driven models allows in combination with optional Vision Unit ultra-high speed auto focus function

The ultra-high speed AF function has been installed to allow focusing on a surface to be measured at a speed of about one second. Freedom from burdensome focus adjustment even on a workpiece with many asperities allows the operator to perform stress-free measurement, drastically reducing operator's fatigue.

Features
Model:
MF-UJ4020D
Observation image:
Erect
Indication accuracy (at 20°C):
XY-axis: (2.2+0.02L) µm
Z-axis: (5+0.04L) µm
L: Measuring length (mm) when not loaded, JIS B 7153
Floating function:
X and Y axes with Quick-release mechanism
XY stage travel range:
400 x 200 mm
XY stage top size:
610 x 342 mm
Max. stage loading:
15 kg
Effective glass size:
440 x 240 mm
Remote Box:
- Speed adjustment
- Coarse/Fine Speed switching
- Jog shuttle
- Emergency stop switch
- AF button
- Counter reset button
- Data output button
- Power switch
- Limit setting (Z-axis) Remote Box
Swiveling function (left):
±3°
