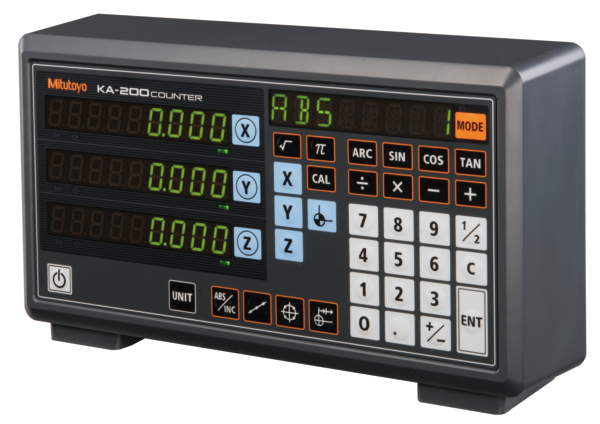

Linear Scale Counter KA-213 174-185D
Linear Scale Counter KA-213 174-185D
Roll over image to zoom in Click on image to zoom
Linear Scale Counter KA-213 174-185DLinear Scale Counter KA-213 174-185D

Linear Scale Counter KA-213 174-185D

Mitutoyo SKU: 174-185D
Price: €683.13 Excluding VAT
his counter displays length indication transmitted from a linear scale.
The KA-Counter offers you the following benefits:
  • Can be used as a “standard counter” or a “lathe counter” by modifying parameters.
  • Downsizing, weight saving and multiple function have been realized.
  • Sub display for easy operation.
  • Text data can be output using the optional USB interface.
  • The optional external interface RS-232C enables connection to a PC and a printer.
Features
Axes:
3
Display:
7-segment, 8-digit + sign +
8-character alphabet LED display
Resolution:
With AT100 Series:
0.05 - 0.0001 mm
With AT715:
0.01 - 0.001 mm
Dimensions (WxDxH):
260 x 167 x 80 mm
Diameter display:
Yes
Operation temperature:
0°C to 45°C
1/2 calculation:
Yes
mm/inch conversion:
Yes
Bolt-hole circle machining:
Yes
Scale reference points:
Yes
Linearity error compensation:
Yes
Zero approach function (Incremental mode):
Yes
Mass:
1.33 kg
Addition of 2-scale data:
Yes
Coordinate system switching:
Yes
Error message:
Yes
Lower digit blanking out:
Yes
Macro functions:
Rectangular drilling and round milling newly added
Main features:
Feed speed display; taper machining function; tool data; multipoint compensation; scale check function; calculation function
Measurement direction setting:
Yes
Memory backup:
Yes
Output (optional):
RS-232C / USB
Pitch machinig:
Yes
Resolution setting:
Yes
Smoothing:
Yes

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
