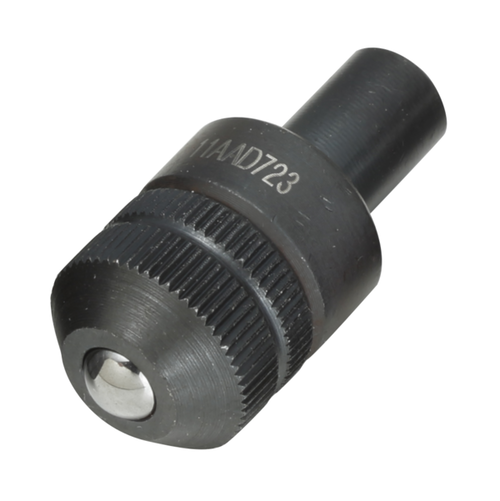

Ball indenter for Brinell test, 5 mm tungsten carbide ball

without calibration certificate

Item number: 11AAD723

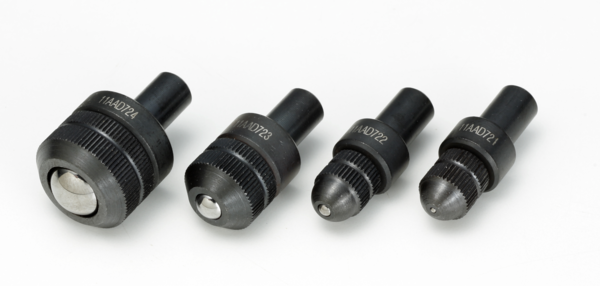

Mitutoyo indenters for Brinell hardness test

As the interface between machine and material, the indenter must be of immaculate quality.
Ball holders are made by Mitutoyo, and are supplied without calibration certificate for the included ball.
Please order a ball with DAkkS calibration certificate according to DIN EN ISO 6506-2 and ASTM E10 separately.


Please contact us if you do not find what you are looking for.

Features
Description:
Brinell ball indenter with 5,0mm tungsten carbide ball. Calibration certificate not included.
Method:
  • Brinell
  • Ball indentation test
Type:
Ball indenter
Material:
tungsten carbide
Ball Diameter mm:
5
Calibration:
without
Shaft Ø mm:
6.3
Shaft length:
10
Chamfer angle°:
20
Collar Ø mm:
12
Usable length mm:
16
Total length mm:
26
Product line:
  • HR-100
  • HR-200
  • HR-300
  • HR-400
  • HR-500
  • HR-600
  • AR-10, AR-20
  • ARK
